L90 22 Inch Off-Road Dual-Beam LED Light Bar

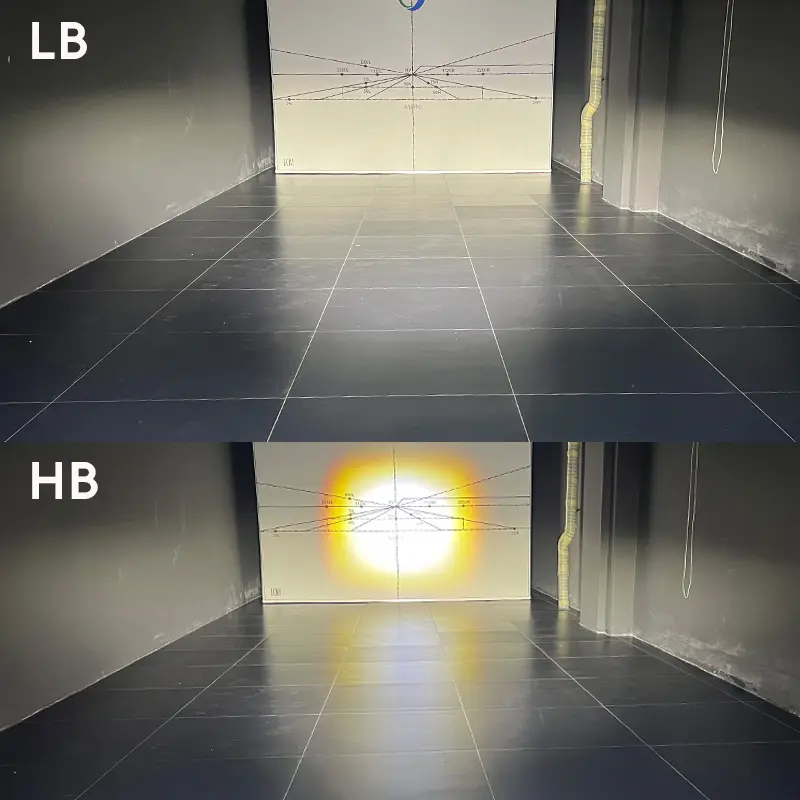

The L90 22 Inch LED Light Bar is engineered for off-road and auxiliary vehicle lighting applications requiring powerful dual-beam illumination in a slim housing. Operating on 10–30V DC, the L90 delivers 60W / 4600 LM low-beam output and 90W / 6320 LM high-beam output. Its integrated optical system combines high and low beam functions with white and yellow position / DRL lighting, while the high beam provides long-range illumination rated at 1 lux at 450 meters. With IP68 protection and ECE R148, ECE R149 and ECE R10 compliance, the L90 combines lighting performance, weather protection and electromagnetic compatibility for professional automotive and off-road applications.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specifications of L90 22 Inch LED Light Bar
| Specification | Value | Specification | Value |
| Model | L90 | Product Type | 22 Inch Off-Road Dual-Beam LED Light Bar |
| Operating Voltage | 10–30V DC | Low Beam Output | 60W / 4600 LM |
| High Beam Output | 90W / 6320 LM | Beam & Position / DRL | 1 lux @ 450 m / Yellow & White |

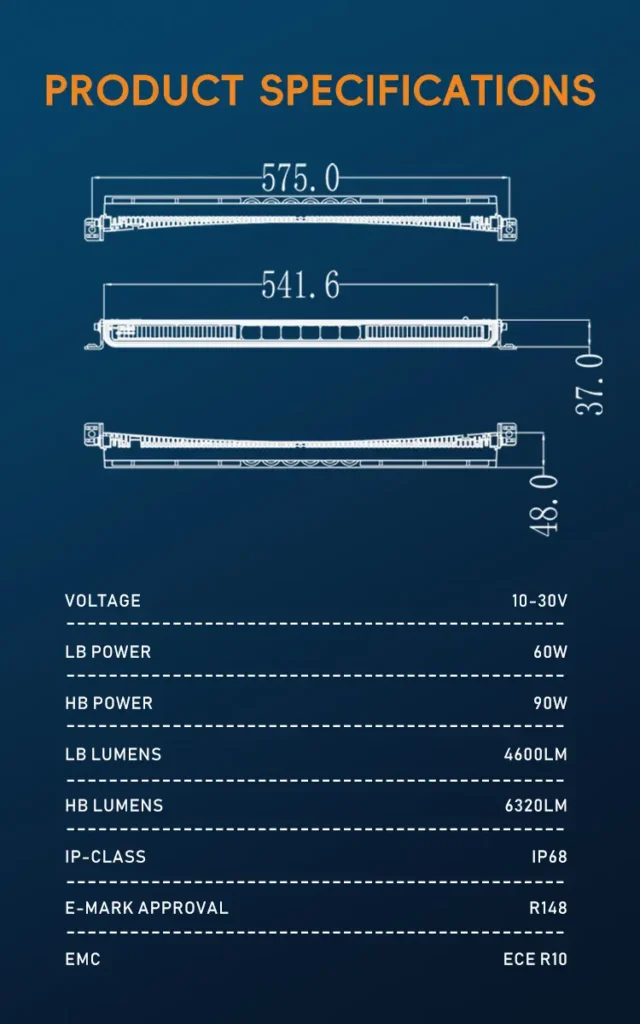

| Protection & Compliance | IP68 / ECE R148 / R149 / R10 | Dimensions & Housing | 575.0 × 37.0 × 48.0 mm; body 541.6 mm; extruded aluminum |
L90 22 Inch LED Light Bar Features & Applications

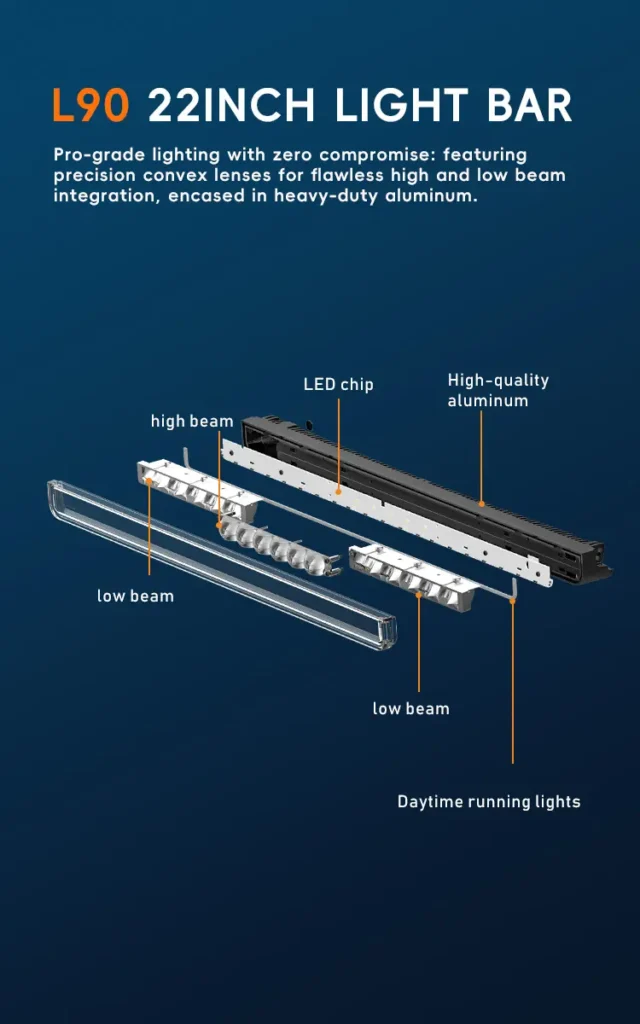

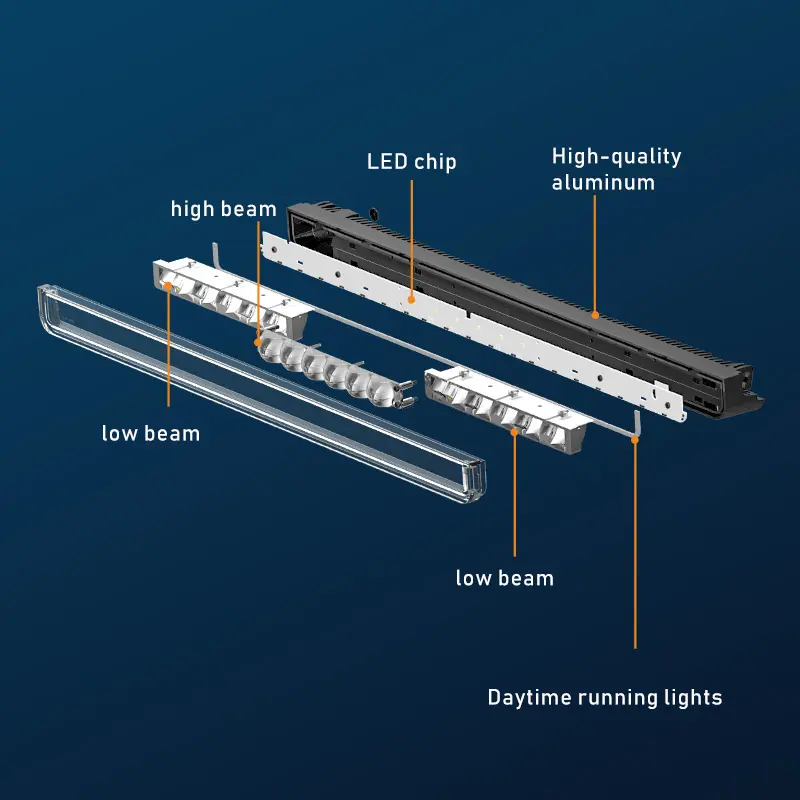

The L90 uses a modular dual-beam optical layout that integrates low-beam illumination with focused high-beam modules in one slim, low-profile housing. Its extruded aluminum construction incorporates heat-dissipation structures, while IP68 protection supports demanding wet, dusty and off-road environments. ECE R148, ECE R149 and ECE R10 compliance covers applicable lighting and electromagnetic compatibility requirements. Suitable applications include auxiliary lighting for off-road trucks, pickups, SUVs, 4×4 vehicles and overland builds; commercial and fleet vehicles; and all-weather outdoor driving in rain, mud and remote off-road routes. Vehicle examples represent typical categories and do not claim confirmed model-specific fitment.
Datasheet
PDF • 320 KB
Catalog
PDF • 8MB
3D Drawing
PDF • 800 KB
