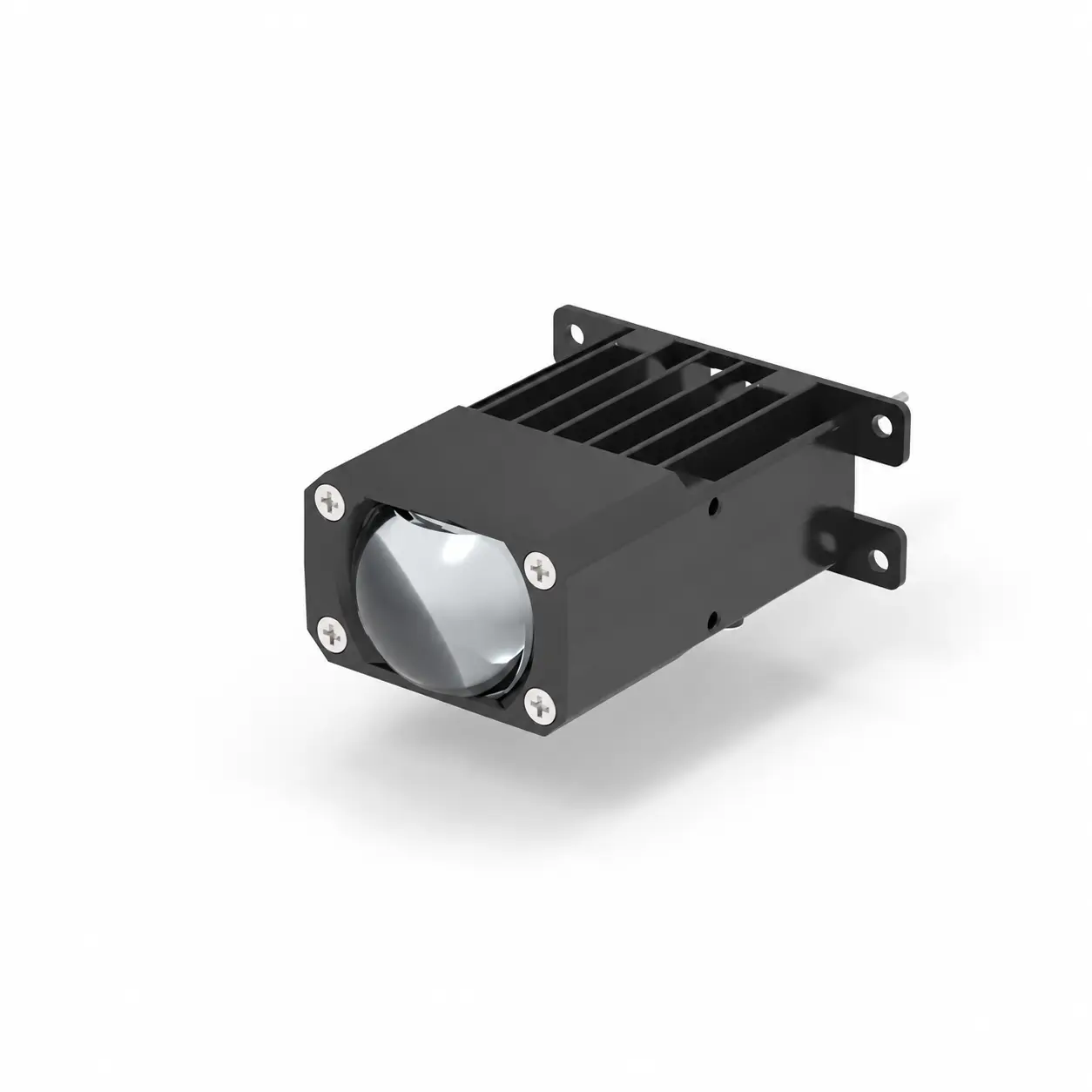

M1 1 Inch Matrix LED Projector Lens
The M1 1 Inch Matrix LED Projector Lens is a compact automotive lighting module designed for space-limited headlight retrofits, motorcycle lighting applications and custom lighting assemblies. Built around 6 automotive LED chips, the M1 combines a compact optical system with 20W low- and high-beam operation. Low beam delivers 1000LM and 300LX, while high beam delivers 500LM and 500LX. The module also features IP69K protection, an aluminum housing, intelligent CPU temperature control and a 1-second quick start.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specifications of M1 1 Inch Matrix LED Projector Lens

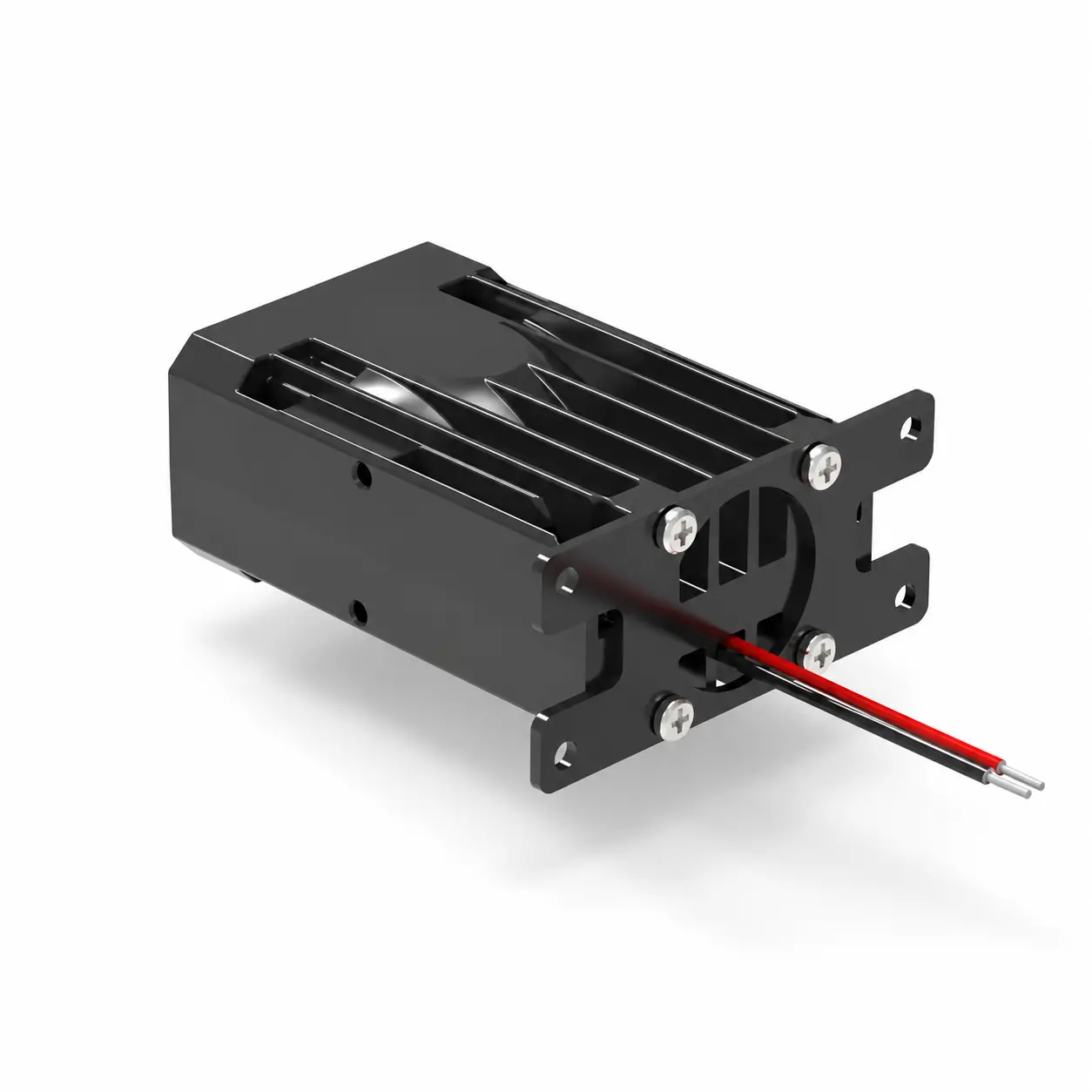

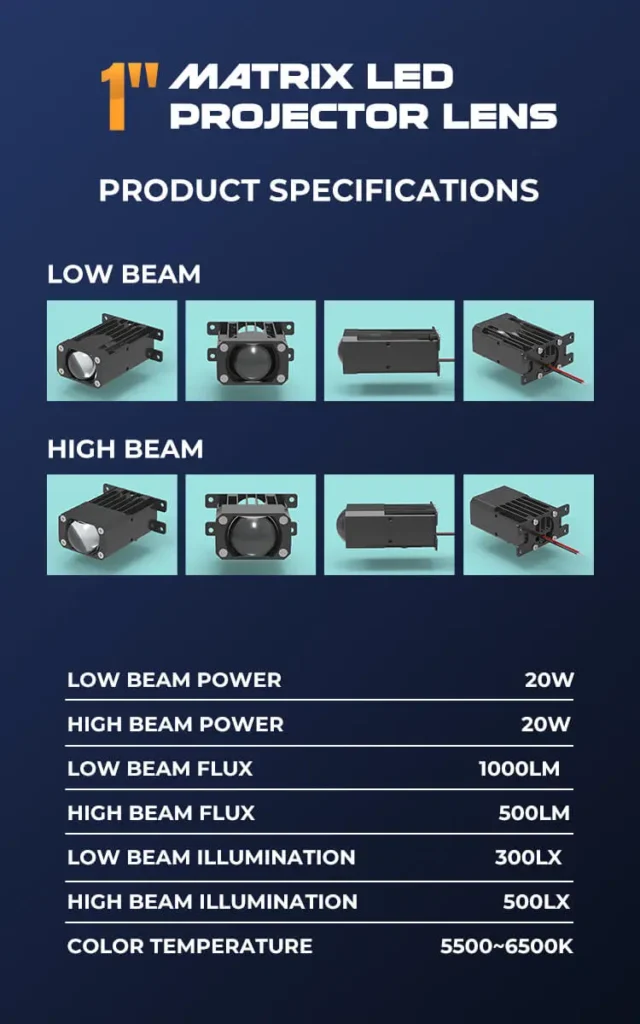

| Specification | Value | Specification | Value |
| Model: | M1 | Product Type: | Matrix LED Projector Lens |
| Lens / Profile: | 1 Inch | LED Chips: | 6 Automotive LED Chips |
| Low Beam Power: | 20W | Low Beam Luminous Flux: | 1000LM |
| Low Beam Illuminance: | 300LX | High Beam Power: | 20W |
| High Beam Luminous Flux: | 500LM | High Beam Illuminance: | 500LX |
| Color Temperature: | 5500K–6500K | Waterproof Rating: | IP69K |
| Housing Material: | Aluminum | Thermal Management: | Intelligent CPU Temperature Control |
| Startup: | 1-Second Quick Start | Dimensions: | 48mm Height / 30mm Width |
| Cut-Off Options: | High/Low Cut-Off or Parallel Cut-Off |
M1 1 Inch Matrix LED Projector Lens Features & Applications
The M1 1 Inch Matrix LED Projector Lens is a compact automotive lighting module designed for space-limited headlight retrofits, motorcycle lighting applications and custom lighting assemblies.

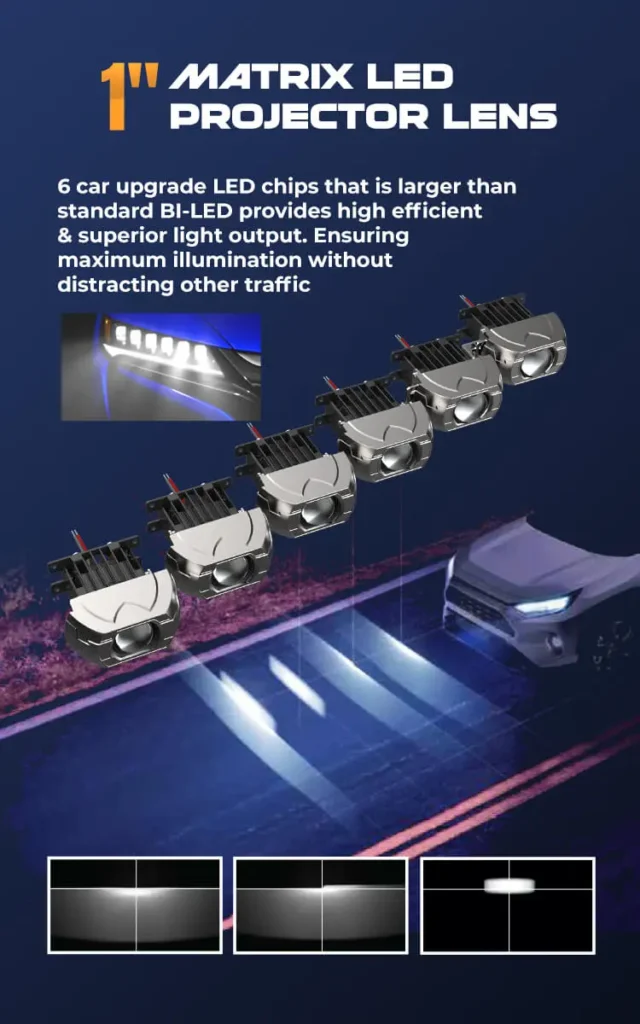

Built around 6 automotive LED chips, the M1 combines a compact optical system with 20W low- and high-beam operation. Low beam delivers 1000LM luminous flux and 300LX illuminance, while high beam delivers 500LM and 500LX. Its 5500K–6500K color temperature provides a clean white lighting output.

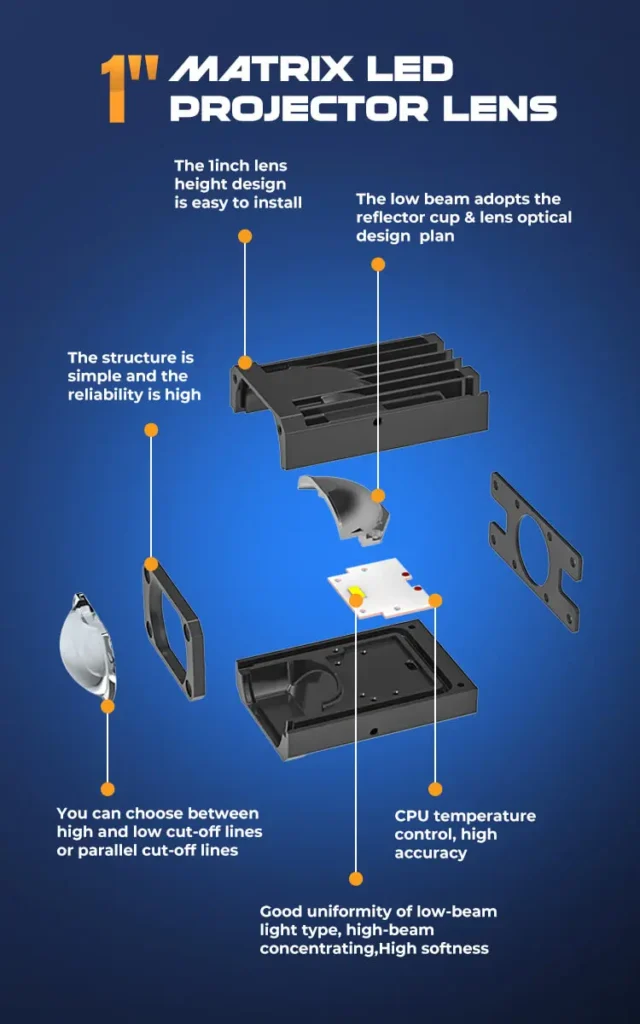

A precision reflector-and-lens optical system creates a controlled low-beam cut-off, with high/low and parallel cut-off options available. The aluminum housing, IP69K protection design and intelligent CPU temperature control are intended to support reliable operation in demanding automotive environments.

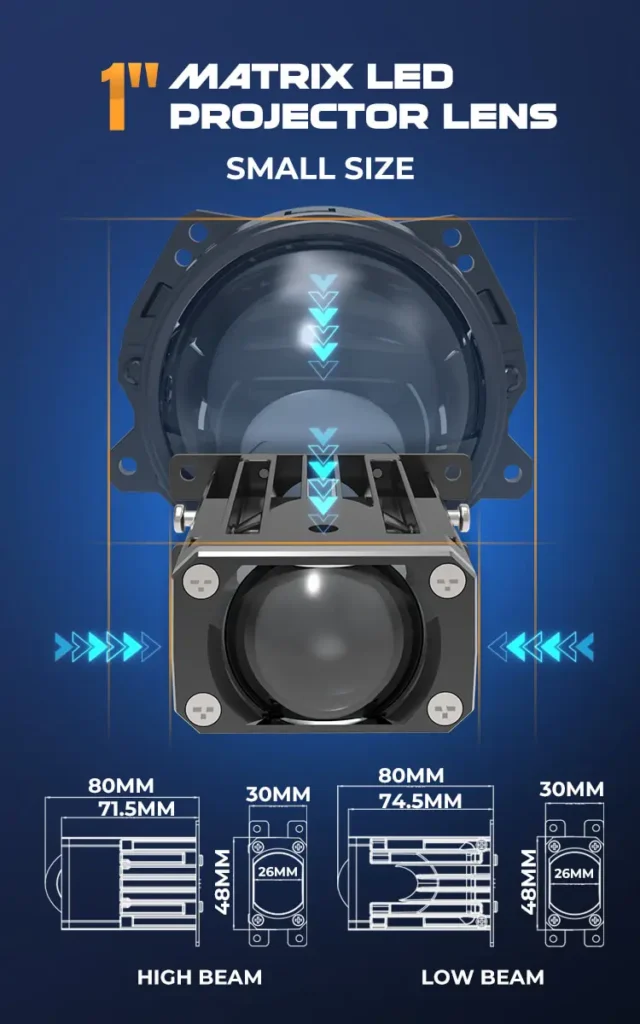

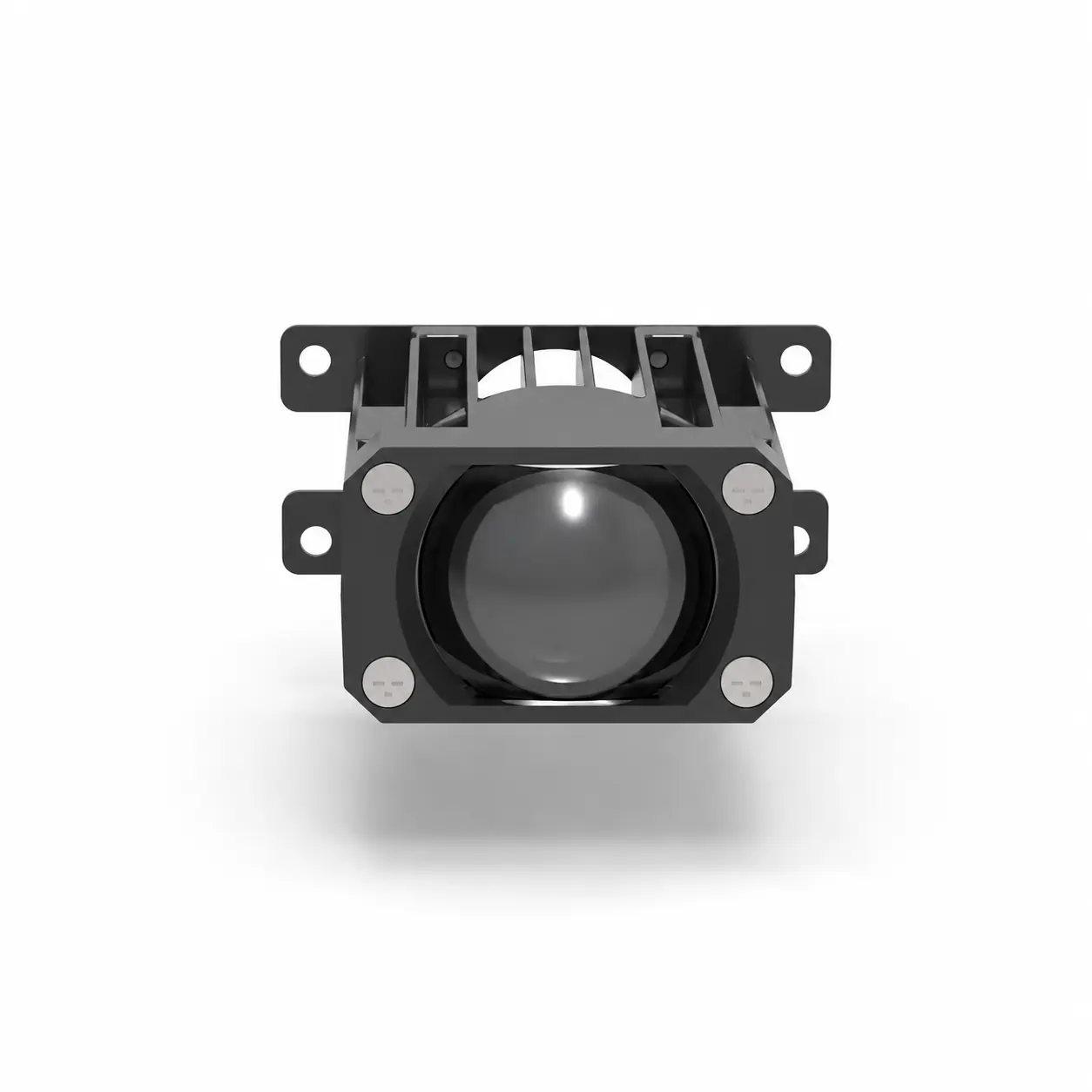

With compact dimensions of approximately 48mm in height and 30mm in width, the M1 is suitable for custom automotive headlight assemblies, motorcycle lighting installations and other retrofit applications where installation space is limited.
