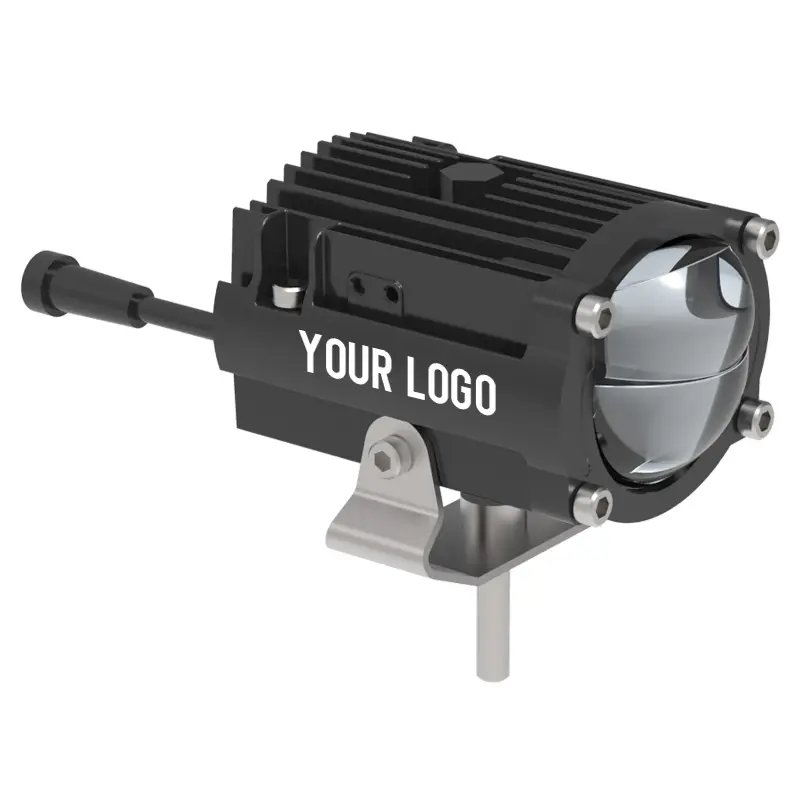

N40D 2 Inch Matrix Bi-LED Projector Lens (9–60V Wide Voltage)

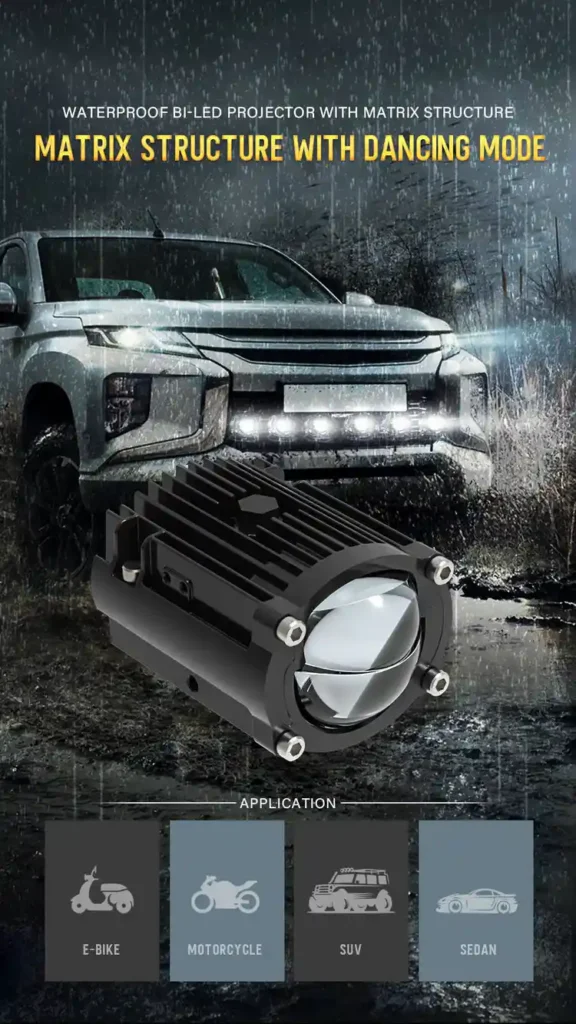

The N40D 2 Inch Matrix Bi-LED Projector Lens combines a compact matrix-style optical structure with a wide DC 9–60V operating range for flexible automotive and two-wheel vehicle lighting applications. Delivering 30W on low beam and 40W on high beam, the N40D uses Tianxin 3570 LED chips to produce 1,600 LM ±10% low-beam output and 2,400 LM ±10% high-beam output within a compact 2-inch platform. Its optical system is designed for smooth, uniform low-beam distribution and concentrated high-beam illumination, while CPU-based temperature control supports stable thermal performance. With built-in EMC interference-control design and wide-voltage compatibility, the N40D is suitable for compatible e-bikes, motorcycles, SUVs and passenger cars.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

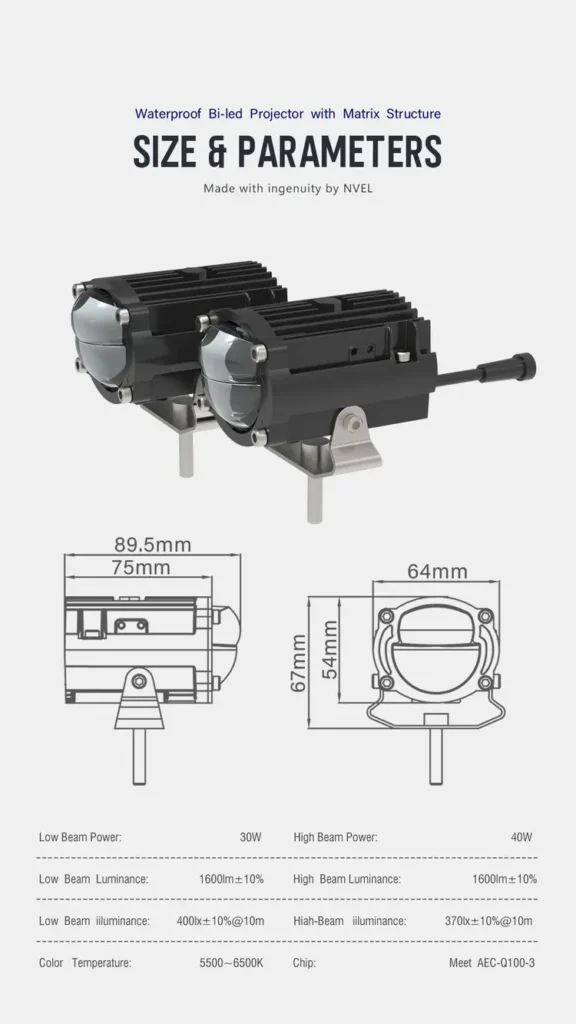

Technical Specifications — N40D Matrix Bi-LED Projector Lens
| Specification | Value | Specification | Value |
| Model / Model Option | N40D | Product Type / Lens Size | 2 Inch Matrix Bi-LED Projector Lens / 2 Inch |
| Operating Voltage / Power | DC 9–60V / Low 30W / High 40W | Luminous Flux | Low 1,600 LM ±10% / High 2,400 LM ±10% |
| Illuminance @10m | Low 400 lx ±10% / High 370 lx ±10% | Color Temperature / LED Chip | 5500K–6500K / Tianxin 3570 |
| LED Configuration | Low Beam 6-Core / High Beam 3-Core | Thermal / EMC / Dimensions / Applications | CPU Temperature Control / Built-In EMC Interference-Control Design / 89.5 × 64 × 67 mm / E-Bike, Motorcycle, SUV, Sedan |

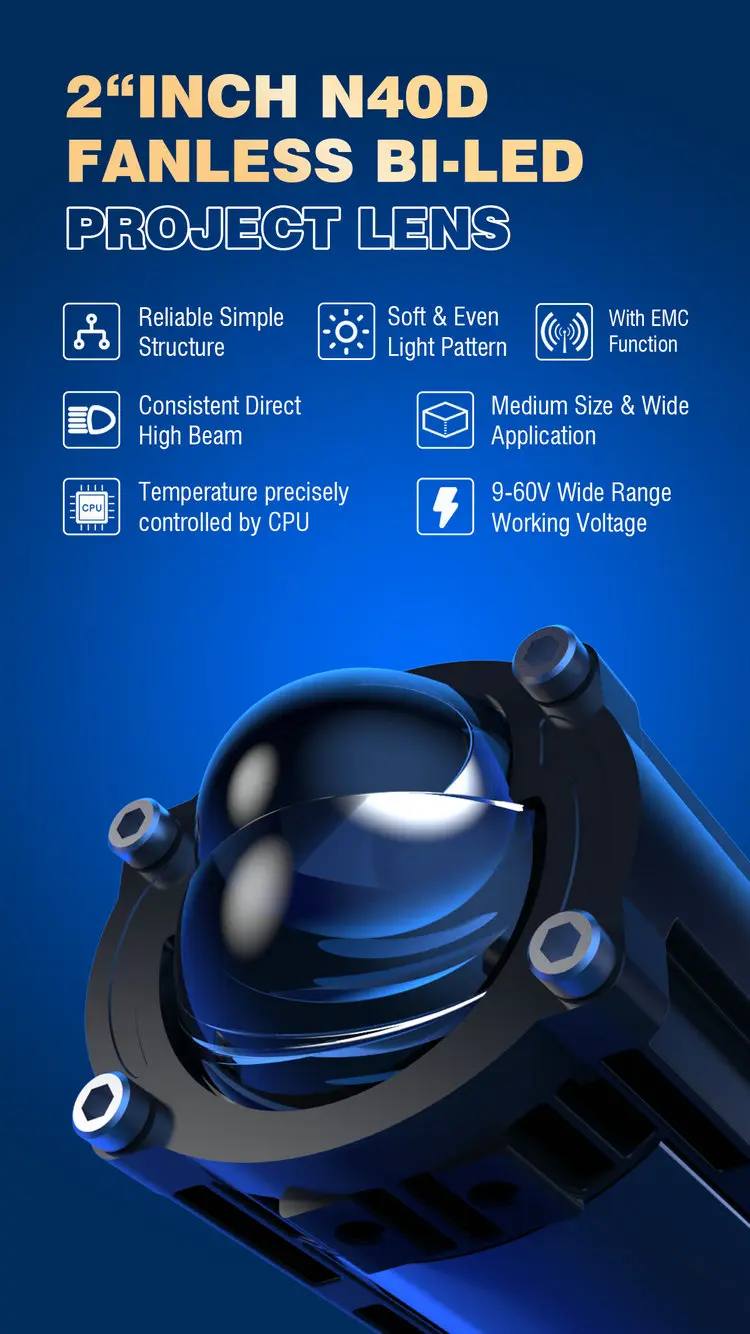

N40D Matrix Bi-LED Projector Lens Features & Performance

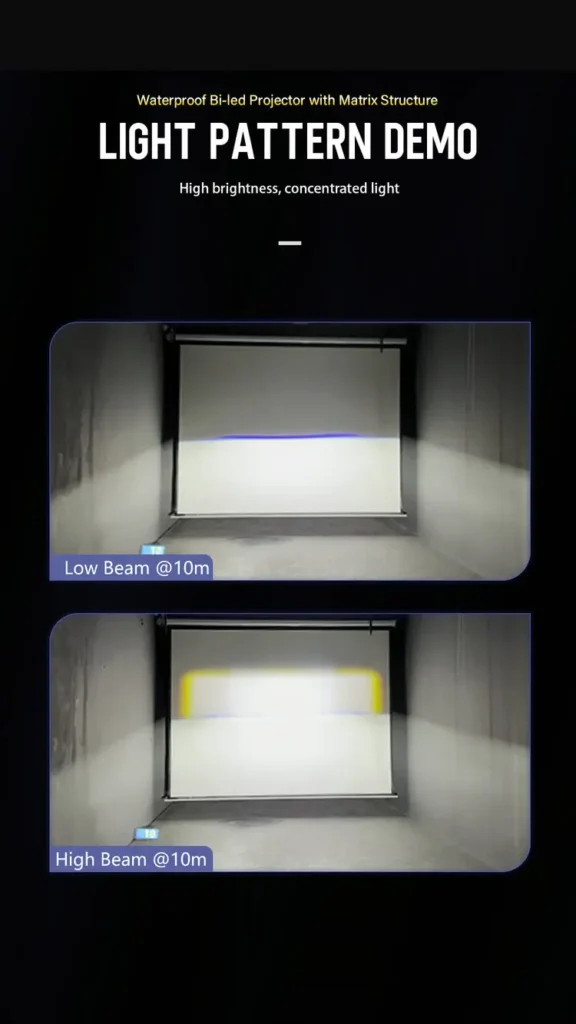

The N40D combines compact matrix Bi-LED architecture with wide 9–60V operation. Its smooth, uniform low-beam distribution delivers 30W, 1,600 LM ±10% and 400 lx ±10% @10m, while the concentrated high beam delivers 40W, 2,400 LM ±10% and 370 lx ±10% @10m. CPU thermal management supports stable operation, and integrated interference-control electronics are designed to help minimize electrical interference in compatible vehicle systems. Suitable applications include e-bikes, motorcycles, SUVs, passenger cars, automotive auxiliary lighting and retrofit lighting applications. Final fitment should be confirmed according to installation space, mounting method and electrical requirements.
