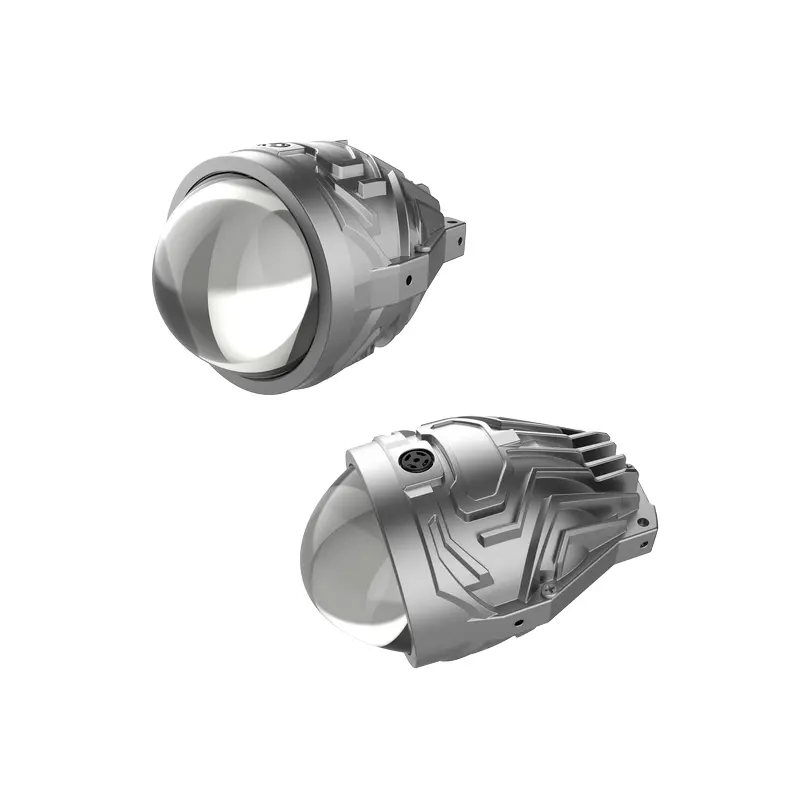

Multi-angle display of C90 LED fog lamp lens showing optical dome lens and housing.

Heavy-duty waterproof C90 LED fog lamp lens with IP-rated protection against harsh weather.

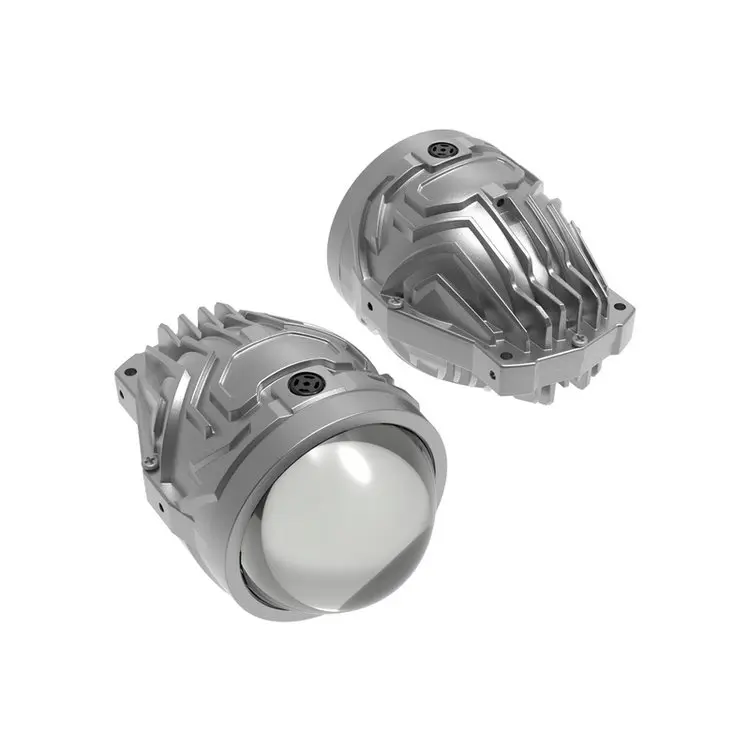

A pair of C90 LED fog lamp lens for automotive headlights retrofit and upgrade.

C90 High Brightness LED Fog Lamp Lens

The C90 High Brightness Condensing Fog Lamp Lens is engineered for drivers who demand uncompromised visibility in extreme road conditions. Its customized high-lumen LED chips and high-definition condensing glass lens produce a sharp, dense 6000K beam with strong penetration through fog, rain, snow, and dust. The rugged IPX68-sealed aluminum body and oversized fin-shaped heat sink ensure reliable performance from -40°C to +105°C.

Superior Weather Penetration

High-definition condensing optics deliver powerful beam penetration through rain, fog, snow, and dust for safer driving.

IPX68 Waterproof Protection

The sealed aluminum housing protects critical electronics from water immersion, splashes, mud, dirt, and corrosion.

High-Output Dual Beam

Built to standard 3-inch circular dimensions, providing quick 30,000+ Hours installation into original factory fog light openings without body modification.

Optimized Aluminum Cooling

An oversized fin-shaped aluminum alloy heat sink accelerates thermal evacuation for stable output and a service life beyond 30,000 hours.

DISCOVER NVEL →

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

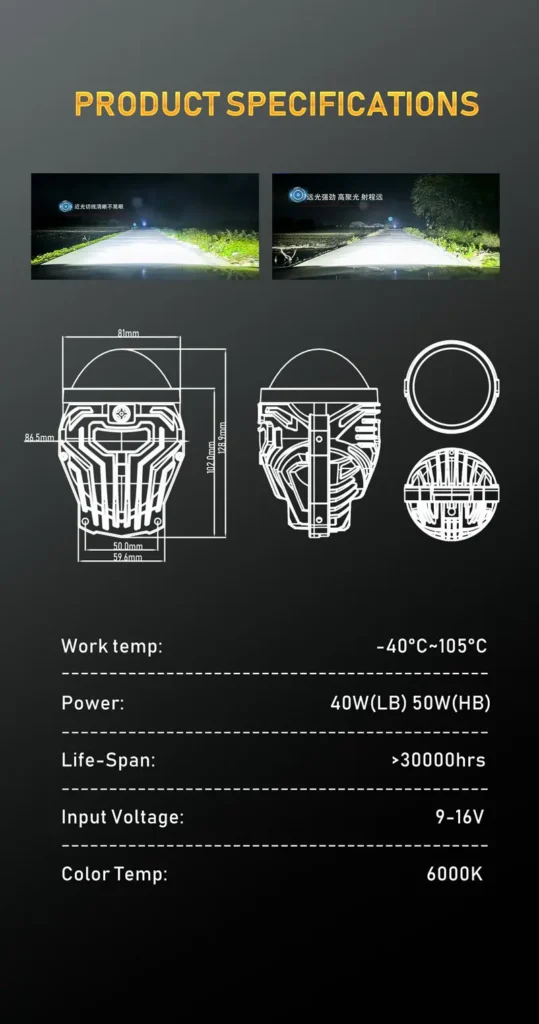

C90 LED Fog Lamp Lens Specifications

Specification	Details
Model Name	C90 High Brightness Condensing LED Fog Lamp Lens
Power Output	Low Beam: 40W / High Beam: 50W
Color Temperature	6000K Crystal White
Waterproof Rating	IPX68
Input Voltage	DC 9V – 16V
Operating Temperature	-40°C to +105°C
Lifespan	> 30,000 Hours
Heat Dissipation	Fin-shaped Aluminum Alloy Heat Sink Body
Lens Optics	High-Definition Condensing Glass Lens

LED Fog Lamp Lens Features & Applications

The C90 High Brightness Condensing Fog Lamp Lens combines customized high-lumen LED chips with an optical HD glass lens to cut through dense fog, heavy rain, snow, and dusty terrain. Its rugged aluminum alloy body, advanced finned heat-dissipation system, and IPX68 waterproof protection support dependable operation from -40°C to +105°C. The C90 is an ideal lighting upgrade or auxiliary-light retrofit for off-road vehicles, SUVs, trucks, passenger cars, and motorcycles seeking wider peripheral illumination and stronger long-range night vision.

C90 high brightness LED fog lamp lens with strong condensing light performance for vehicles.

C90 LED fog lamp lens providing high penetration in rainy, foggy, snowy, and dusty conditions.

Datasheet

PDF • 320 KB

Catalog

PDF • 8MB

3D Drawing

PDF • 800 KB

FAQ

Is the C90 LED Fog Lamp completely waterproof for off-road driving?

Yes. The C90 carries an IPX68 waterproof rating, ensuring complete protection against water immersion, high-pressure splashes, mud, and dust under severe off-road conditions.

How does the C90 perform in bad weather like heavy fog or snow?

The C90 uses a high-definition condensing optical lens and customized LED chips calibrated for strong light penetration, helping minimize glare reflection from airborne water droplets and snow.

What are the power specifications and light color for low and high beam?

The C90 delivers 40W on low beam with a sharp cutoff to reduce glare and 50W on high beam for long-distance projection, both at a crisp 6000K color temperature.

Will LED heat cause performance degradation over time?

The oversized fin-shaped aluminum alloy heat sink provides high thermal conductivity, efficiently drawing heat away from the LED chips to maintain stable output and extend service life beyond 30,000 hours.
