N65SH1 2.5 Inch Bi-LED Projector Lens

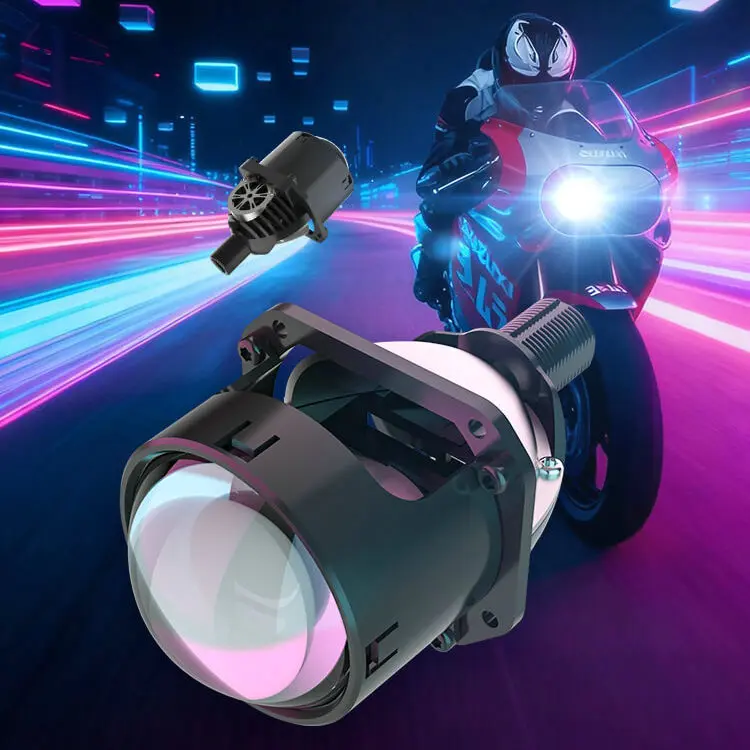

The N65SH1 2.5 Inch Bi-LED Projector Lens is a compact headlight retrofit solution designed for compatible motorcycle and automotive applications. It combines dedicated low and high beams with SanAn 3570 LED technology and a controlled low-beam cutoff. The N65SH1 delivers 47W / 2800 LM ±10% on low beam and 57W / 3100 LM ±10% on high beam. A threaded-shaft mounting system supports compatible H4, H7, 9005 and 9006 headlight installations, while CPU thermal control and a 3210 low-noise fan manage operating temperature.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

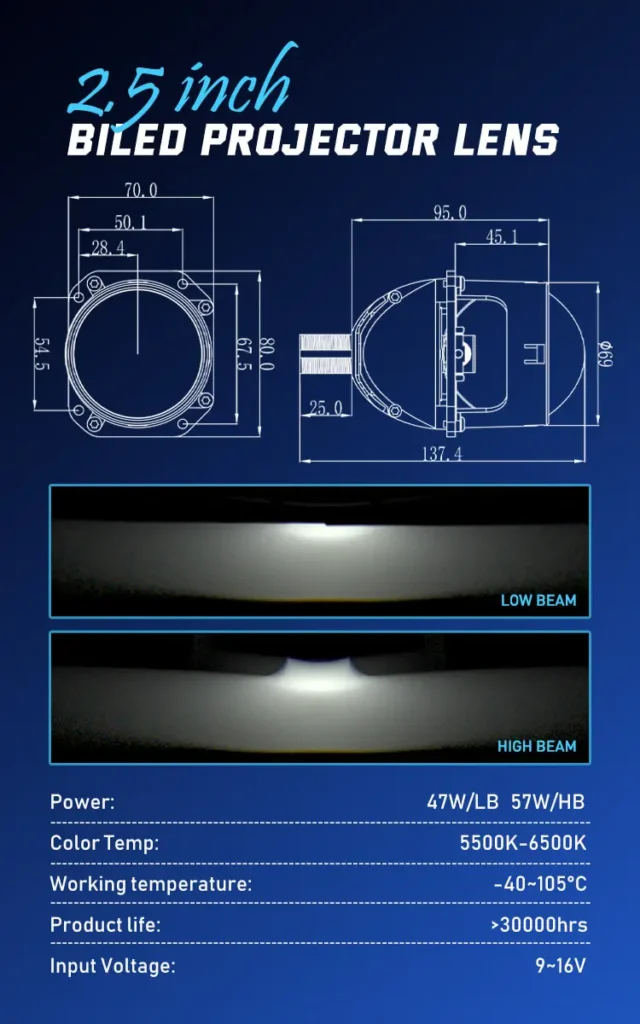

Technical Specifications
| Specification | Value | Specification | Value |
| Model | N65SH1 | Product Type | 2.5 Inch Bi-LED Projector Lens |
| Lens Size | 2.5 Inch | Input Voltage | DC 9–16V |
| Low Beam Power | 47W | High Beam Power | 57W |
| Low Beam Luminous Flux | 2800 LM ±10% | High Beam Luminous Flux | 3100 LM ±10% |
| Low Beam Illuminance | 850 Lux ±10% @ 10m | High Beam Illuminance | 850 Lux ±10% @ 10m |

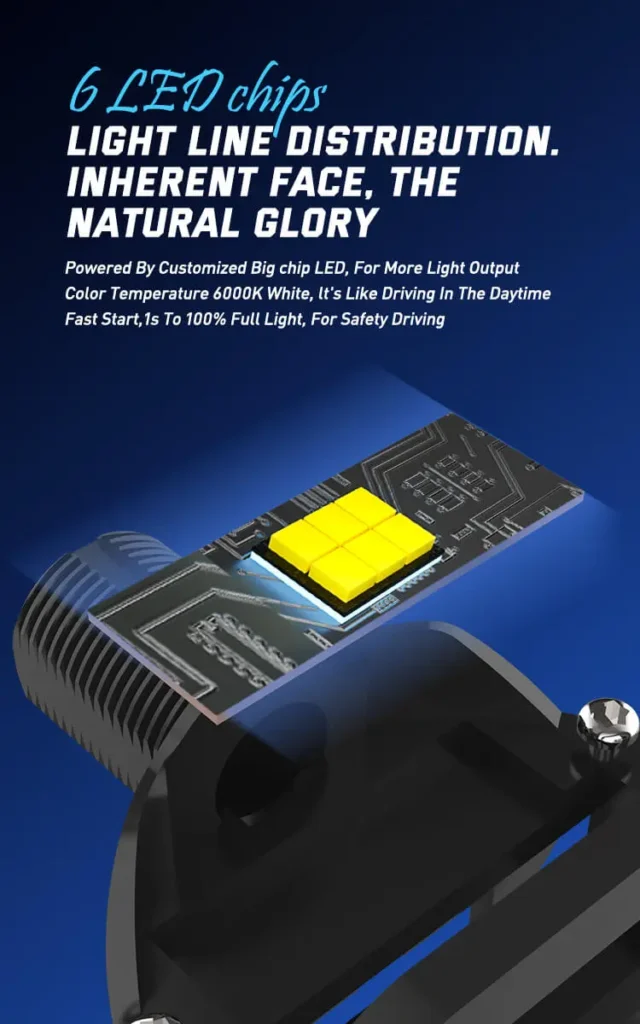

| Color Temperature | 5500K–6500K | LED Source | Customized SanAn 3570 High-Power 6-Core LED |

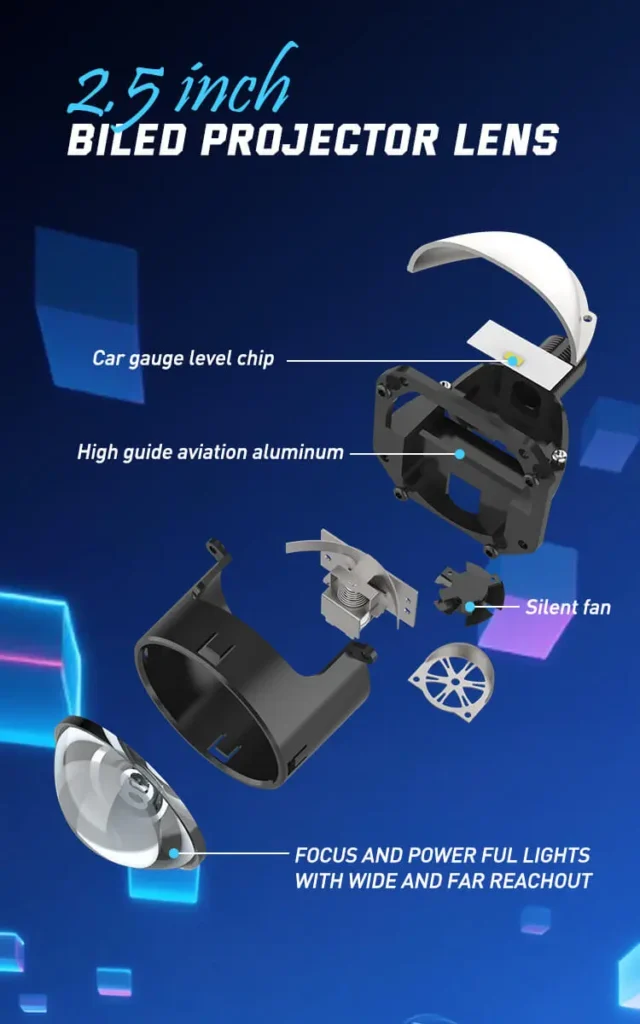

| Cooling System | High-Thermal-Conductivity Aluminum + 3210 Low-Noise Fan + CPU Temperature Control | EMC | Built-In EMC Interference-Control Design |
| Working Temperature | -40°C to +105°C | Lifespan | 30,000 Hours |

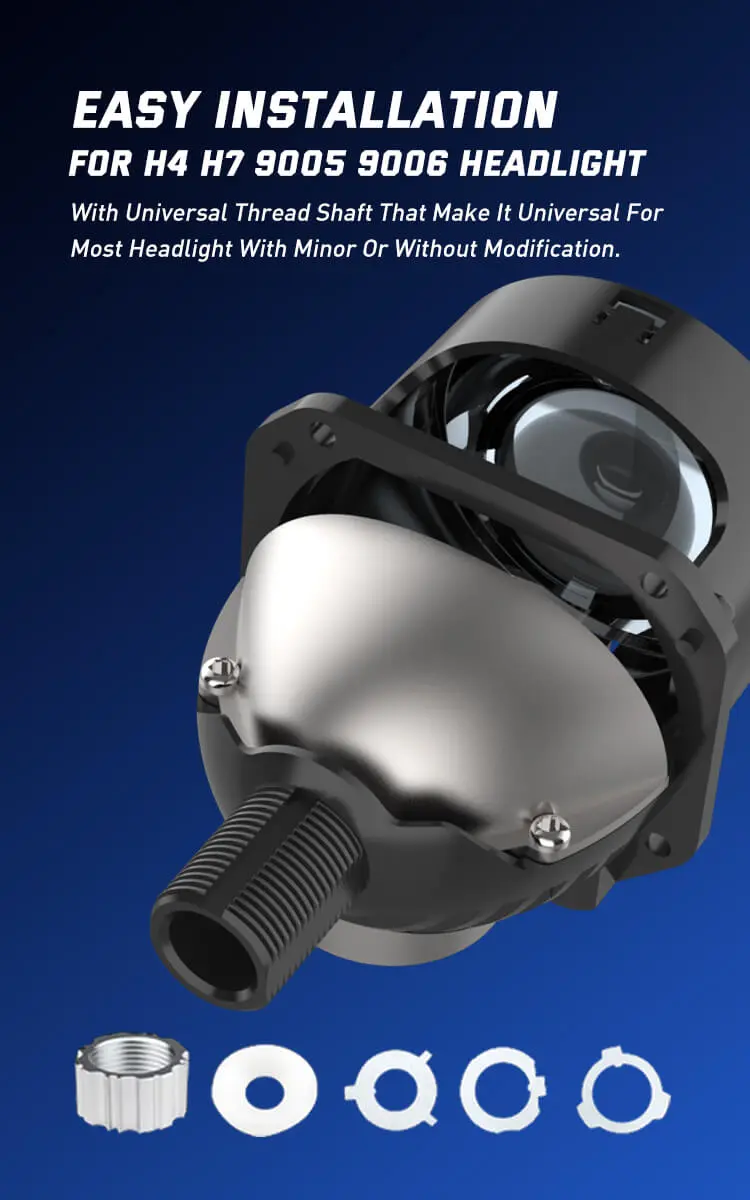

| Mounting System | Threaded-Shaft Retrofit Mount | Supported Socket Applications | H4 / H7 / 9005 / 9006 |
N65SH1 Features & Applications
The N65SH1 2.5 Inch Bi-LED Projector Lens is a compact retrofit lighting solution designed for compatible motorcycle and automotive headlight applications. Its dedicated low beam operates at 47W and delivers 2800 LM ±10%, while the high beam increases output to 57W and 3100 LM ±10%. Both low and high beams are specified at 850 Lux ±10% measured at 10 meters, with a color-temperature range of 5500K–6500K. The optical system uses customized SanAn 3570 high-power 6-core LED technology. Projector optics provide a defined low-beam cutoff and controlled beam distribution. Thermal management combines high-thermal-conductivity aluminum construction, a 3210 low-noise cooling fan and intelligent CPU temperature control. The N65SH1 is specified for operation from -40°C to +105°C and a service life of more than 30,000 hours. A threaded-shaft mounting design supports compatible H4, H7, 9005 and 9006 headlight applications. Built-in EMC interference-control circuitry is designed to help reduce electromagnetic interference with compatible vehicle electronic systems.
