G3 tri-lens matrix LED grille light pod with durable aluminum alloy casing

G3 High Power LED Grille Light, 95W Tri-Lens Matrix Auxiliary Driving Light Pods

Ultra-Slim 40mm Design

Tri-Lens Matrix Optics

95W / 6000LM Output

Dual 10,000 RPM Fans

EMC + IP67 Protection

The G3 Tri-Lens LED Grille Light is engineered for high-performance off-road and road-driving visibility where installation space is limited. Its ultra-slim 40mm profile combines high-refractive tri-lens optics, premium Sanan 3570 LED chips, 95W high-beam output, 6000 lumens, dual 10,000 RPM cooling fans, intelligent CPU thermal control, built-in EMC suppression and IP67 weather protection.

Ultra-Slim Grille-Mount Design

A compact 40mm low-profile aluminum body fits narrow grille slots, lower bumpers and hood-mount positions without obstructing radiator airflow.

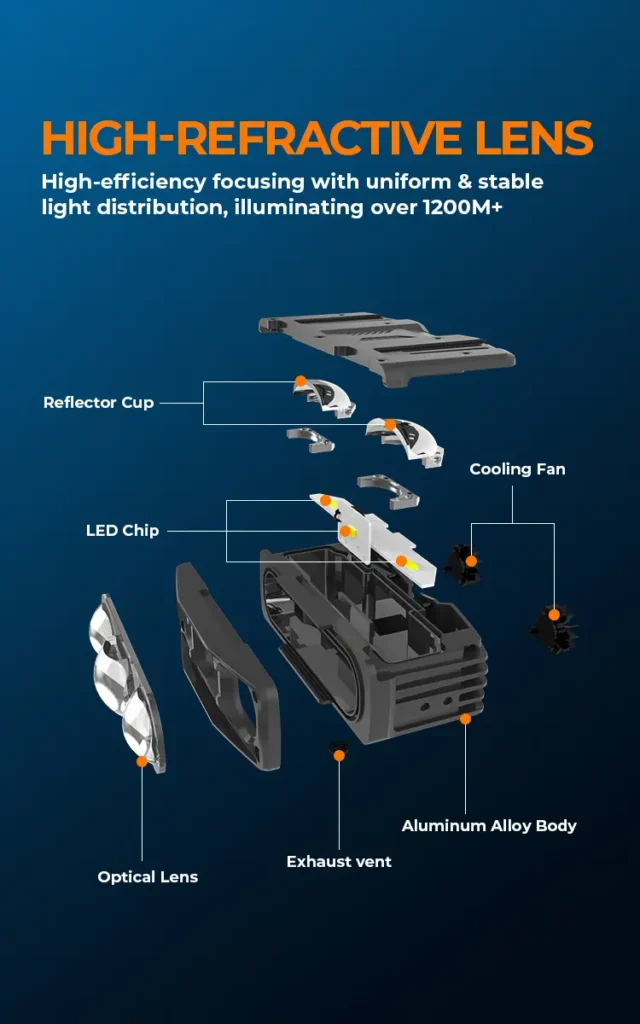

Tri-Lens Matrix Optical System

High-refractive lenses and dual reflector cups produce a smooth anti-glare low beam with a sharp cutoff plus a concentrated long-range high beam.

95W High-Power Illumination

Built to standard 3-inch circular dimensions, providing quick EMC + IP67 Protection installation into original factory fog light openings without body modification.

Dual-Fan Cooling & All-Weather Protection

Dual 10,000 RPM quiet-run fans, intelligent CPU thermal management, built-in EMC suppression and IP67 sealing support stable output in demanding environments.

DISCOVER NVEL →

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

G3 LED Grille Light Technical Specifications

Item	Details & Specifications
Product Name	G3 Tri-Lens LED Grille Light
Low Beam Power	65W (optionally rated up to 75W)
High Beam Power	95W
Luminous Flux	Low Beam: 4800 LM ± 15% / High Beam: 6000 LM ± 15%
Illuminance @ 10m	Low Beam: 1050 Lux ± 15% / High Beam: 1100 Lux ± 15%
Color Temperature	5500K–6500K Pure White
LED Chips	Sanan 3570 6-Core × 2 + Sanan 3570 6-Core 75Mil Chips
Optical System	High-Refractive Tri-Lens Projector with Dual Reflector Cups (Direct-Focus High Beam)
Cooling System	Dual 10,000 RPM High-Speed Silent Fans + Intelligent CPU Temperature Control
EMC / Noise Control	Built-in Anti-Interference EMC (Zero Radio/Electronic Noise)
Waterproof Rating	IP67 Waterproof & Dustproof (waterproof / non-waterproof versions optional)
Dimensions	133.0mm (W) × 86.0mm (D) × 40.0mm (H)

G3 LED Grille Light Features & Applications

The G3 Tri-Lens LED Grille Light is engineered for high-performance off-road and road-driving visibility where installation space is extremely limited. Its innovative three-lens matrix layout and premium multi-core Sanan 3570 LED chips deliver up to 95W high-beam output and 6000 lumens with a clear, anti-glare beam pattern. The ultra-slim 40mm housing, dual 10,000 RPM cooling fans and smart CPU thermal control maintain stable output over extended operation. Built-in EMC anti-interference technology and IP67 weather-sealed construction make the G3 suitable for front grilles, lower bumper cutouts, roof racks and hood mounts on pickup trucks, 4×4 SUVs, motorcycles, ATVs, UTVs and adventure vehicles.

G3 high power LED grille light with tri-lens matrix projector optics for offroad trucks, SUVs, and motorcycles

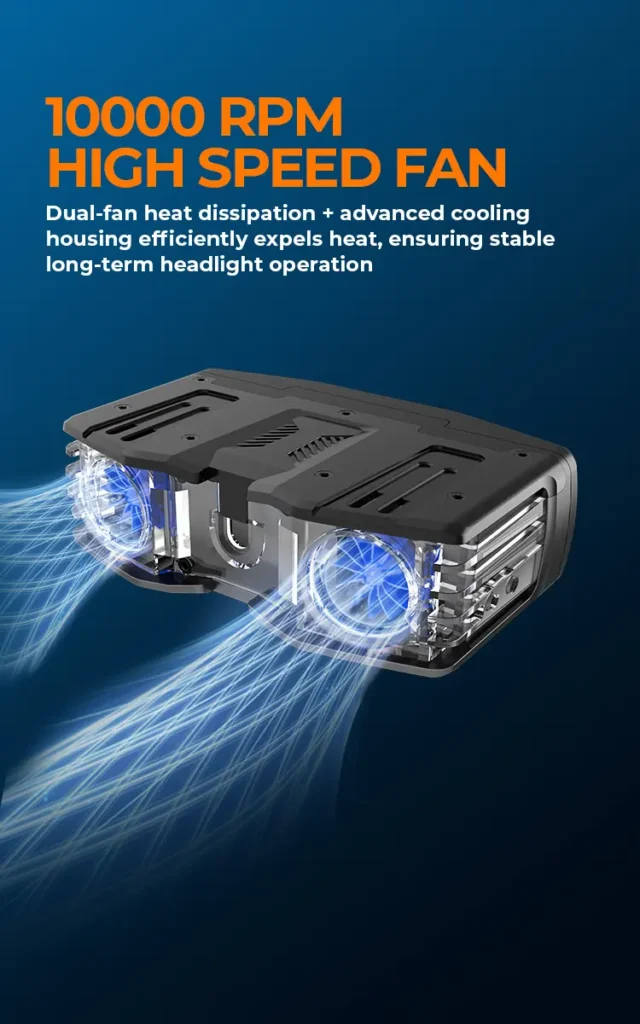

Dual 10000 RPM high-speed cooling fans for G3 LED grille light active heat dissipation

Datasheet

PDF • 320 KB

Catalog

PDF • 8MB

3D Drawing

PDF • 800 KB

FAQ

What are the main benefits of installing a slim LED grille light like the G3?

The G3 is designed to fit narrow front grille openings and lower bumper slots without blocking radiator airflow. Despite its compact 40mm height, its tri-lens matrix optics deliver up to 95W of illumination in a low-profile footprint.

What makes the G3 Tri-Lens optical system better than standard reflector lights?

The G3 combines dual reflector cups with a high-refractive projector lens for low beam and a direct-focus lens for high beam. This matrix layout provides a wide anti-glare foreground beam and a concentrated long-range spot beam extending visibility beyond 1200 meters.

Will the high-speed cooling fans introduce noise or fail in muddy or wet off-road conditions?

No. The G3 uses dual 10,000 RPM quiet-run fans, an IP67 sealed internal chamber and intelligent CPU thermal protection to evacuate heat while resisting water, dust and off-road vibration.

Does this LED grille light cause FM radio interference or electrical noise?

No. The integrated EMC driver circuit suppresses electrical noise to prevent FM radio interference and electronic feedback to compatible vehicle systems.
