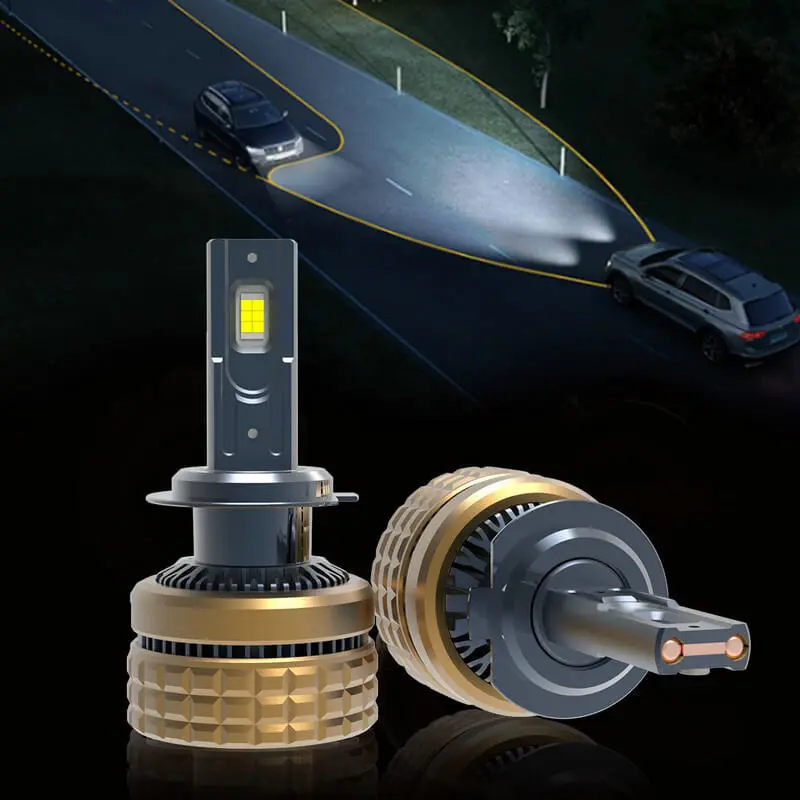

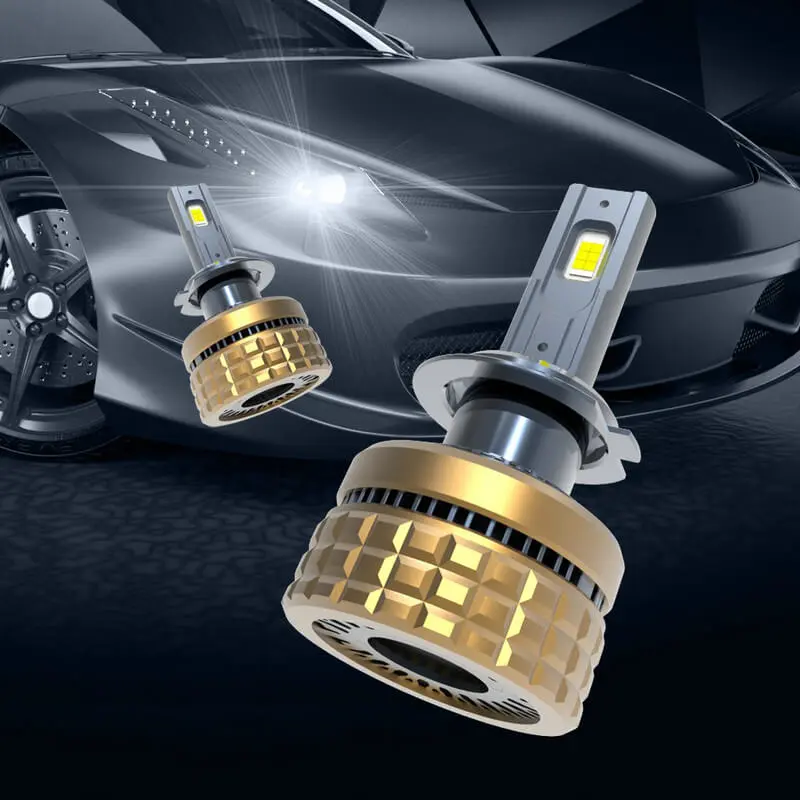

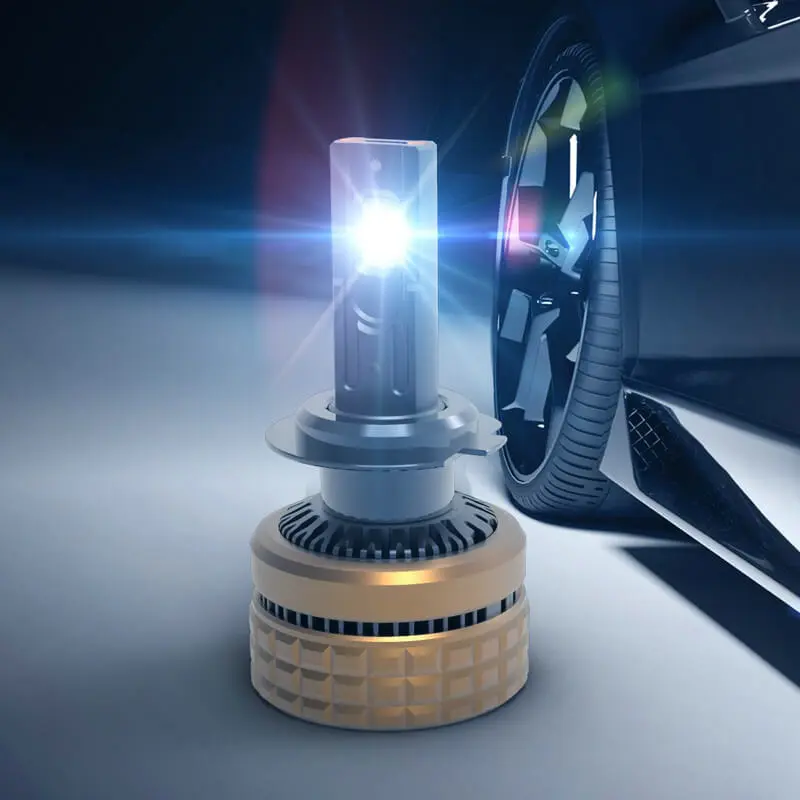

H100 Series 100W 15000LM High-Power LED Headlight Bulb
The H100 Series 100W LED Headlight Bulb is engineered for high-output automotive lighting applications, delivering 15,000 LM per set with a 6000K cool-white light output. Its thermal-management architecture combines a liquid-cooling copper tube, double-sided copper PCB, aviation aluminum housing and a 10,000 RPM active cooling fan to help manage heat under high-power operation. With an effective beam distance of up to 200 meters, DC 9–16V input and IP68-rated waterproof and dustproof protection, the H100 Series provides a high-power LED headlight solution for compatible automotive lighting upgrade applications.

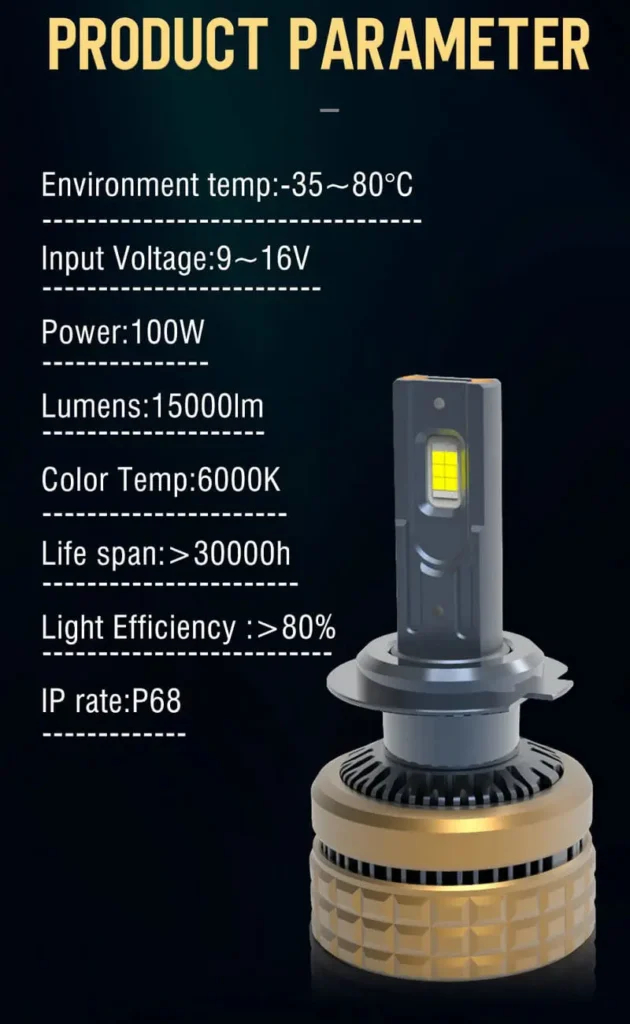

100W LED Headlight Bulb Technical Specifications
| Specification | Value | Specification | Value |
| Model | H100 Series | Product Type | High-Power LED Headlight Bulb |
| Power Output | 100W | Luminous Flux | 15,000 LM |
| Color Temperature | 6000K Cool White | Input Voltage | DC 9–16V |
| Effective Beam Distance | Up to 200 Meters | Cooling Architecture | Liquid-Cooling Copper Tube + Double-Sided Copper PCB + 10,000 RPM Fan |
| Housing Material | Aviation Aluminum Alloy | Operating Temperature | -35°C to +80°C |
| Rated Lifespan | 30,000 Hours | Light Efficiency | 80% |
| IP Rating | IP68 Waterproof & Dustproof | LED Design | High-Output LED Chips |
H100 100W LED Headlight Bulb Features & Applications

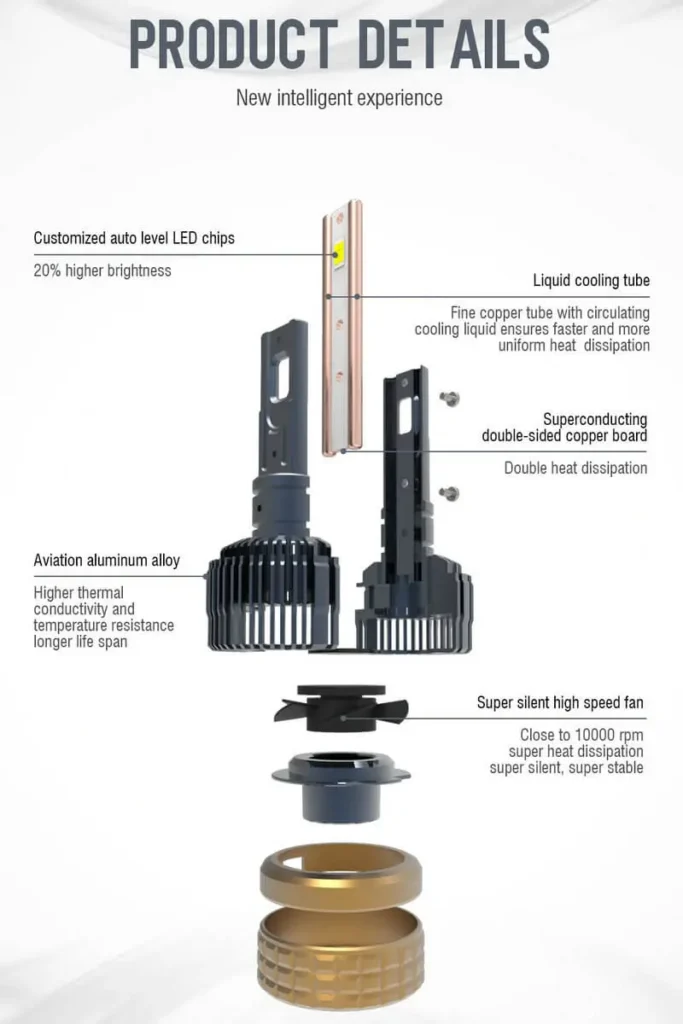

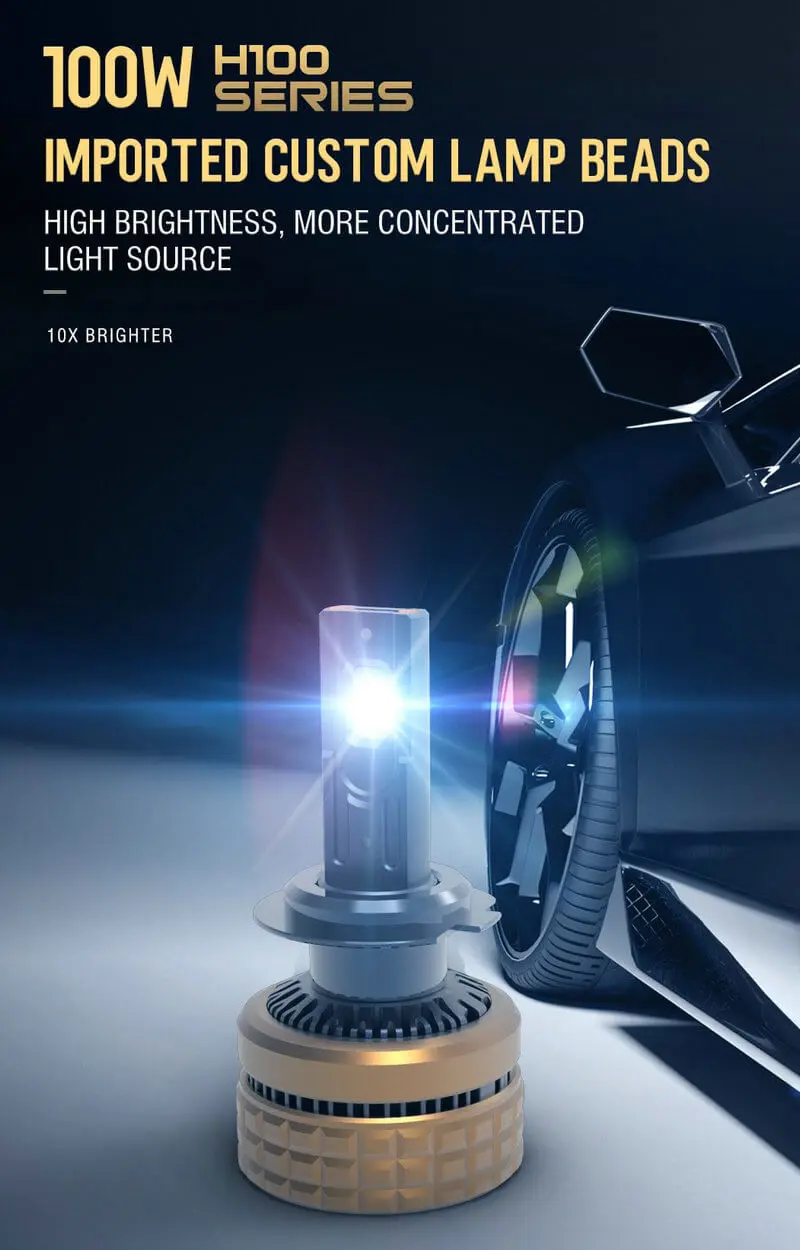

High-Power Light Output: The H100 Series delivers 100W per set and 15,000 LM with 6000K cool-white illumination for demanding automotive headlight applications. Liquid Cooling LED Headlight Thermal Management: A liquid-cooling copper tube, double-sided copper PCB, aviation aluminum housing and 10,000 RPM fan work together to transfer and dissipate heat, supporting stable thermal performance and consistent light output. Long-Range Illumination: The focused optical system provides an effective beam distance of up to 200 meters. Weather-Resistant Construction: IP68 waterproof and dustproof protection supports demanding automotive environments, with a specified operating temperature range of -35°C to +80°C, rated lifespan over 30,000 hours and light efficiency over 80%. Applications include compatible automotive headlight upgrades, high-power headlight applications, passenger cars, SUVs and crossovers. Final compatibility should be confirmed according to bulb socket, installation space, electrical system and headlight housing.
