H65 Series 65W 12000LM Double Heat Pipe LED Headlight Bulb

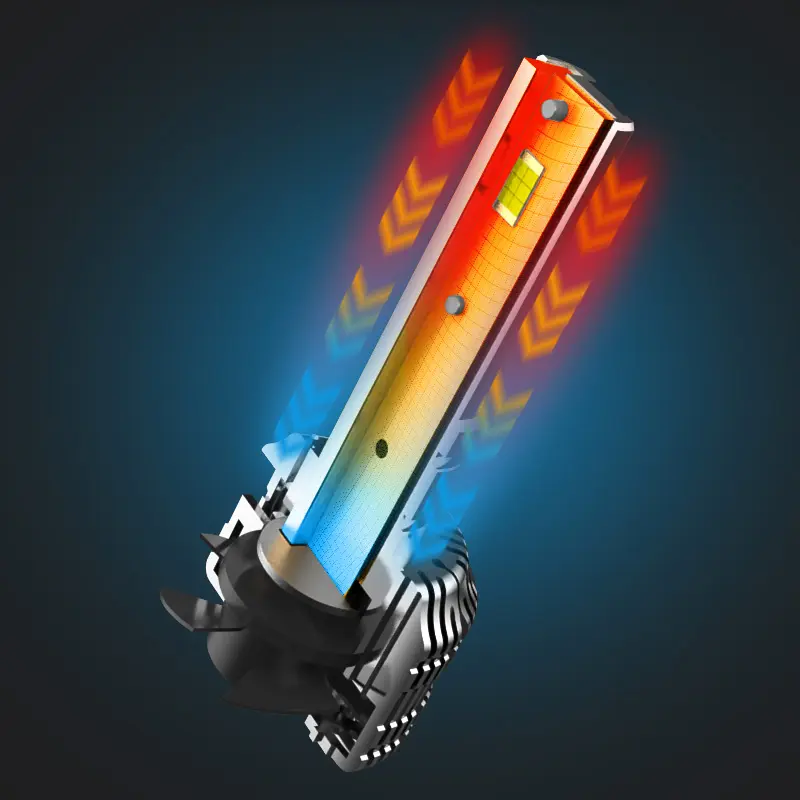

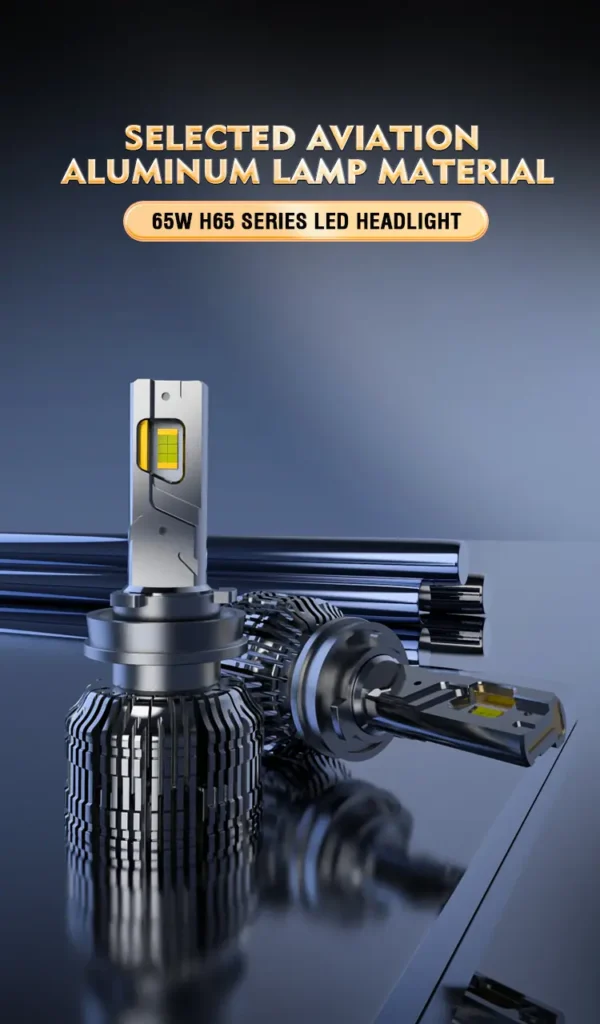

The H65 Series 65W LED Headlight Bulb is designed for high-output automotive lighting applications, delivering 12,000 LM per set with a crisp 6500K cool-white light. Its advanced thermal-management system combines a double heat pipe liquid-cooling process, double-sided copper PCB and a 10,000 RPM active cooling fan to efficiently transfer and dissipate heat during high-power operation. Built with an aviation aluminum alloy housing and IPX6 waterproof protection, the H65 Series supports DC 9–22V input and an operating temperature range from -20°C to +85°C, with a rated lifespan of at least 30,000 hours.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

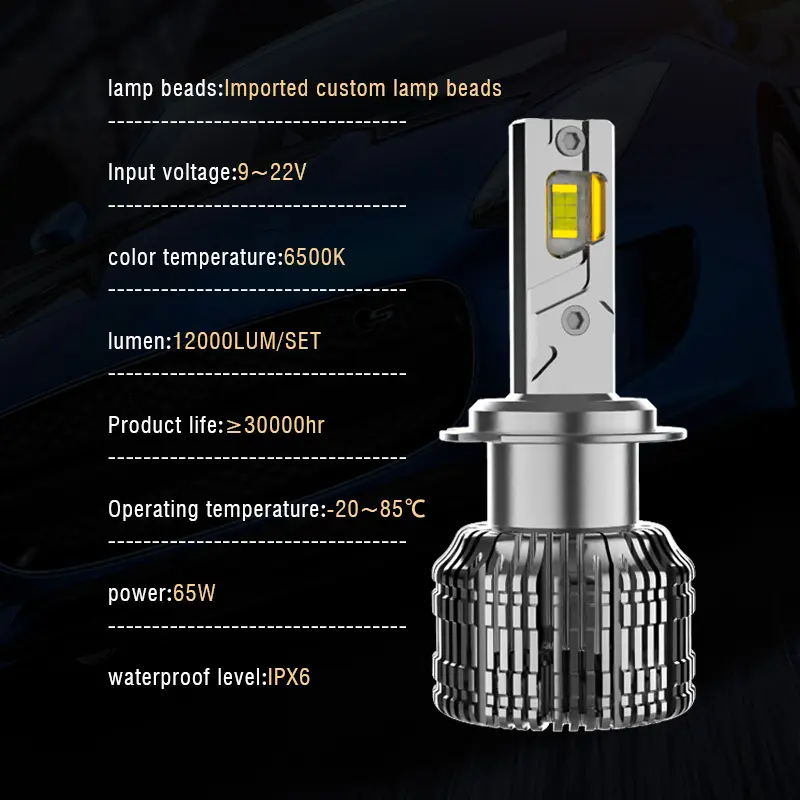

65W LED Headlight Bulb Technical Specifications
| Specification | Value | Specification | Value |
| Model | H65 Series | Product Type | High-Power LED Headlight Bulb |
| Power Output | 65W | Luminous Flux | 12,000 LM |
| Color Temperature | 6500K Cool White | Input Voltage | DC 9–22V |
| Cooling Architecture | Double Heat Pipe Liquid Cooling + Double-Sided Copper PCB + 10,000 RPM Fan | Housing Material | Aviation Aluminum Alloy |
| Operating Temperature | -20°C to +85°C | Rated Lifespan | ≥30,000 Hours |
| Waterproof Rating | IPX6 | Fan Speed | 10,000 RPM |
H65 65W LED Headlight Bulb Features & Performance

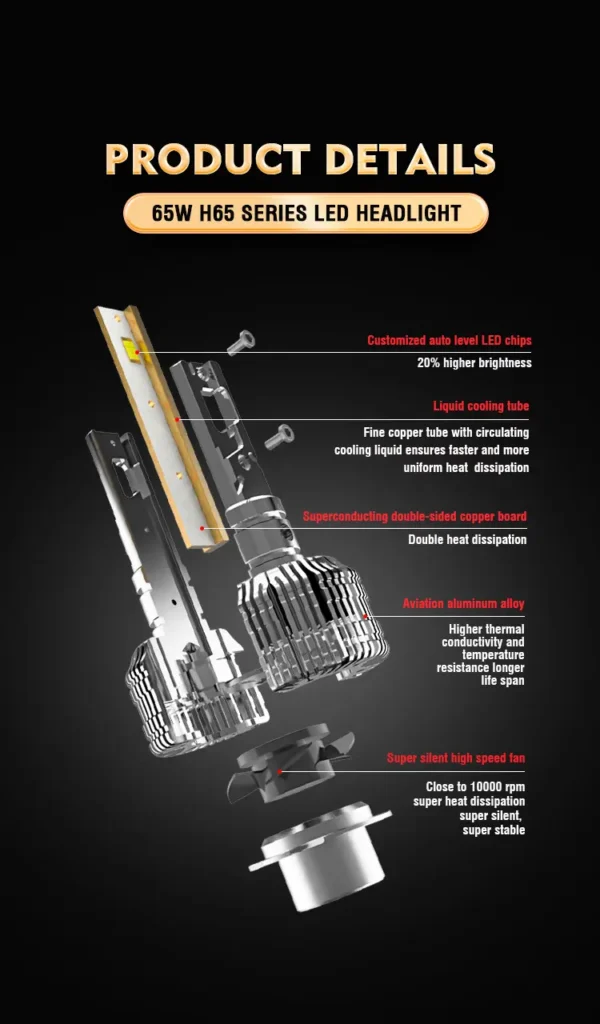

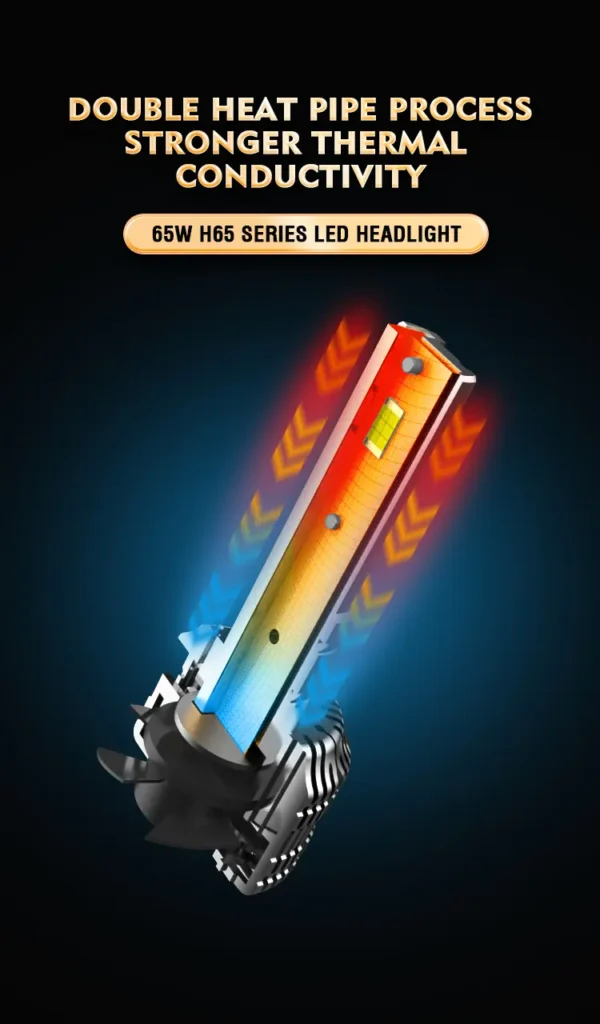

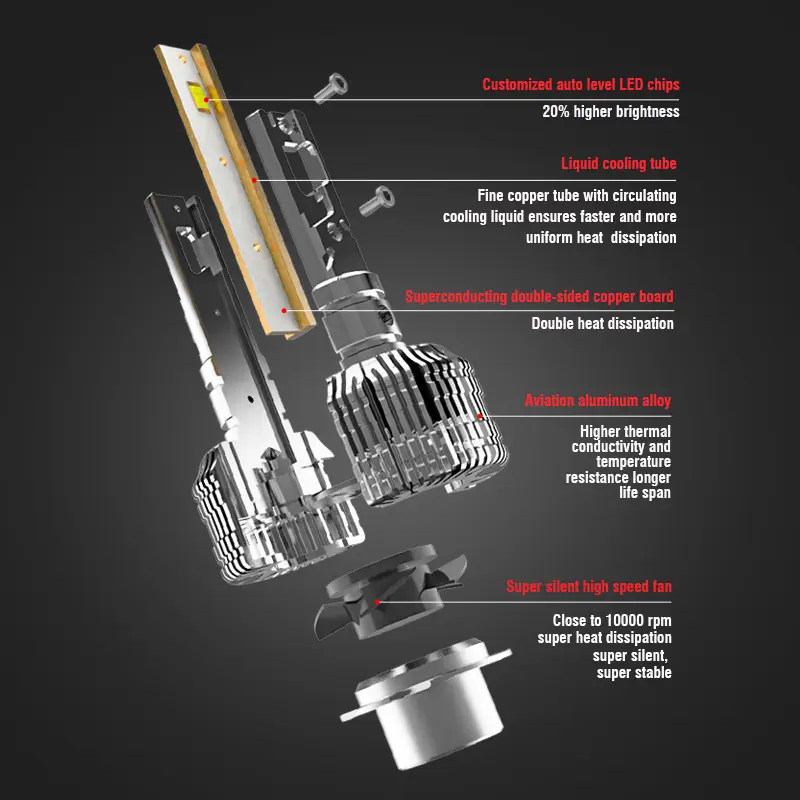

High-Output Illumination: The H65 Series delivers 65W power output and 12,000 LM per set with a 6500K cool-white light. Double Heat Pipe Cooling for Stable High-Power Performance: Dual liquid-cooling copper heat pipes work with the double-sided copper PCB and aviation aluminum housing to efficiently transfer heat away from the LED light source. A 10,000 RPM active fan supports continuous heat dissipation during demanding headlight operation. Wide-Voltage Operation: DC 9–22V input supports compatible automotive headlight applications across a broad operating range. IPX6 Protection: IPX6 waterproof protection supports use in demanding automotive environments. The H65 Series is designed for compatible automotive headlight upgrades, passenger cars, SUVs and crossovers requiring high luminous output and efficient active thermal management. Final compatibility should be confirmed according to bulb socket, headlight housing, installation space and vehicle electrical requirements.
Datasheet
PDF • 320 KB
Catalog
PDF • 8MB
3D Drawing
PDF • 800 KB
