5 Inch Frameless LED Work Light Pod (S0450F 50W / S0460F 60W)
The S0450F / S0460F 5 Inch Frameless LED Work Light Pod is a heavy-duty auxiliary lighting solution designed for off-road, commercial and industrial applications. Its edge-to-edge frameless front helps reduce the accumulation of snow, slush, mud and debris across the lens surface.
Available in two configurations, the S0450F delivers 50W and 4000 lumens, while the S0460F delivers 60W and 4500 lumens. Both models feature CSP 3570 LED technology, 6500K white illumination, DC 9–32V operation, a pressure-relief breather valve and a 360° adjustable mounting bracket.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specifications — 5 Inch Frameless LED Work Light
| Specification | S0450F | S0460F |
| Product Type | 5 Inch Frameless LED Work Light | 5 Inch Frameless LED Work Light |
| Model | S0450F | S0460F |
| Rated Power | 50W | 60W |
| Luminous Flux | 4000 LM ±10% | 4500 LM ±10% |
| LED Chip Specification | CSP 3570 3-Core × 4 LEDs | CSP 3570 3-Core × 4 LEDs |
| Working Voltage | DC 9–32V | DC 9–32V |
| Color Temperature | 6500K Cool White | 6500K Cool White |
| Housing Material | Corrosion-Resistant Powder-Coated Aluminum | Corrosion-Resistant Powder-Coated Aluminum |

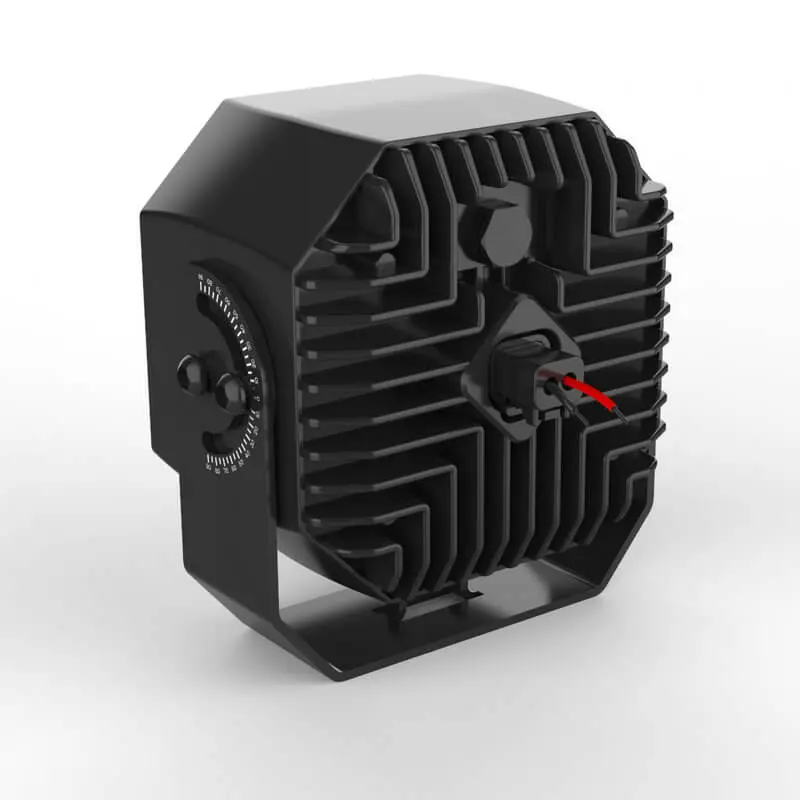

| Connector Type | Sealed DT Connector | Sealed DT Connector |

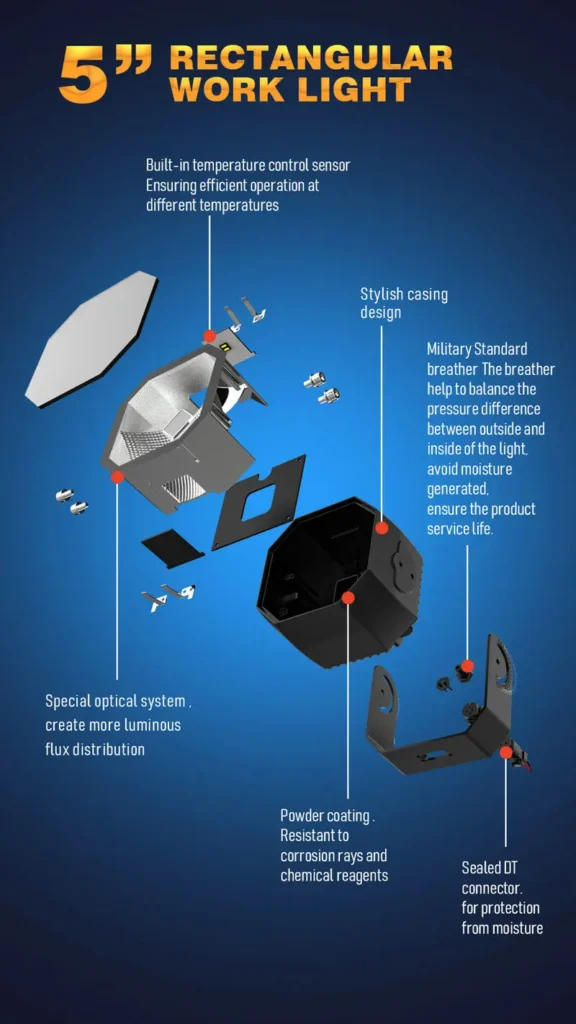

| Thermal System | Built-In Temperature-Control Sensor | Built-In Temperature-Control Sensor |
| Pressure Balance | Pressure-Relief Breather Valve | Pressure-Relief Breather Valve |

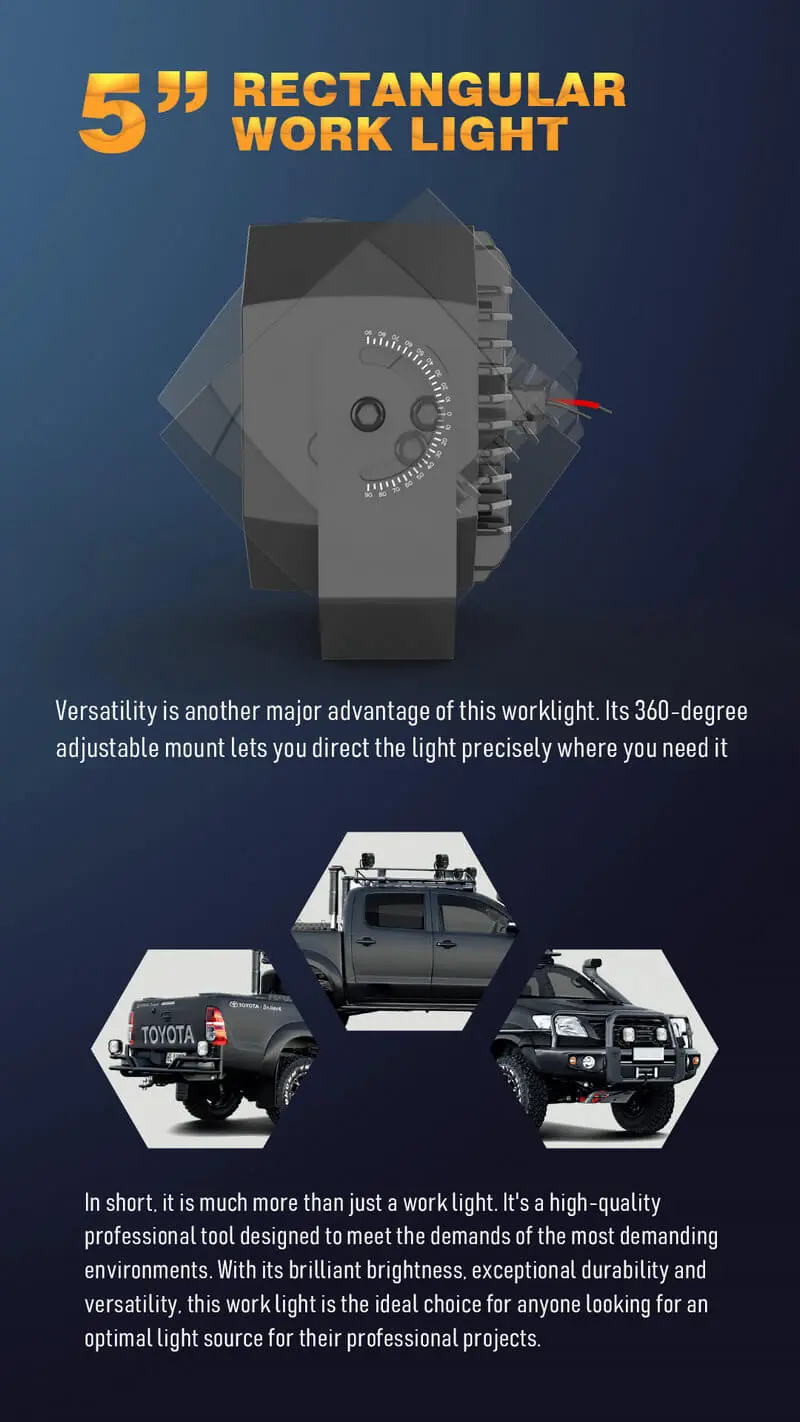

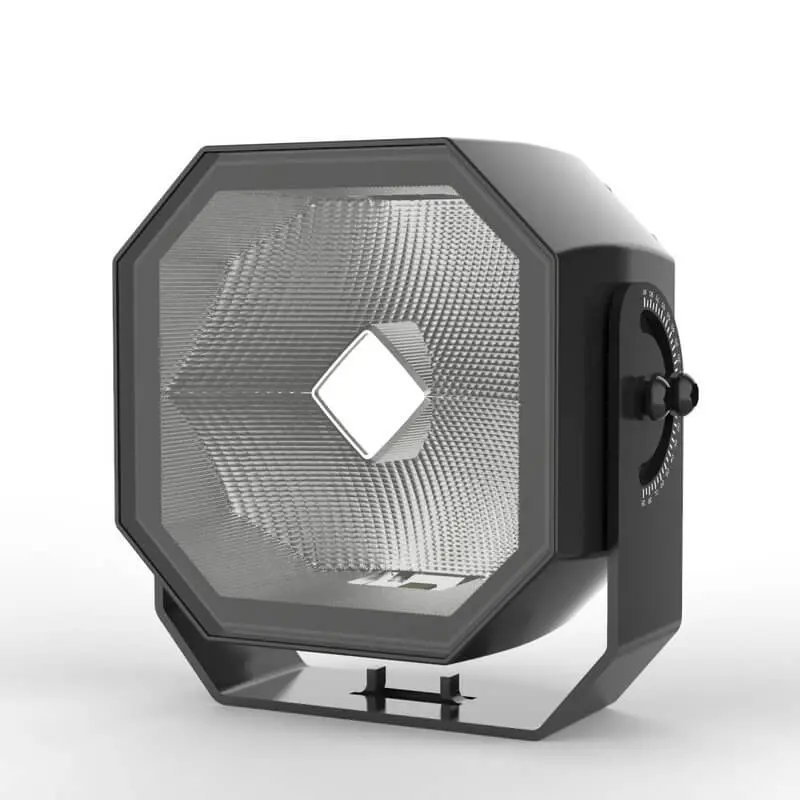

| Mounting Bracket | 360° Angle Adjustable | 360° Angle Adjustable |

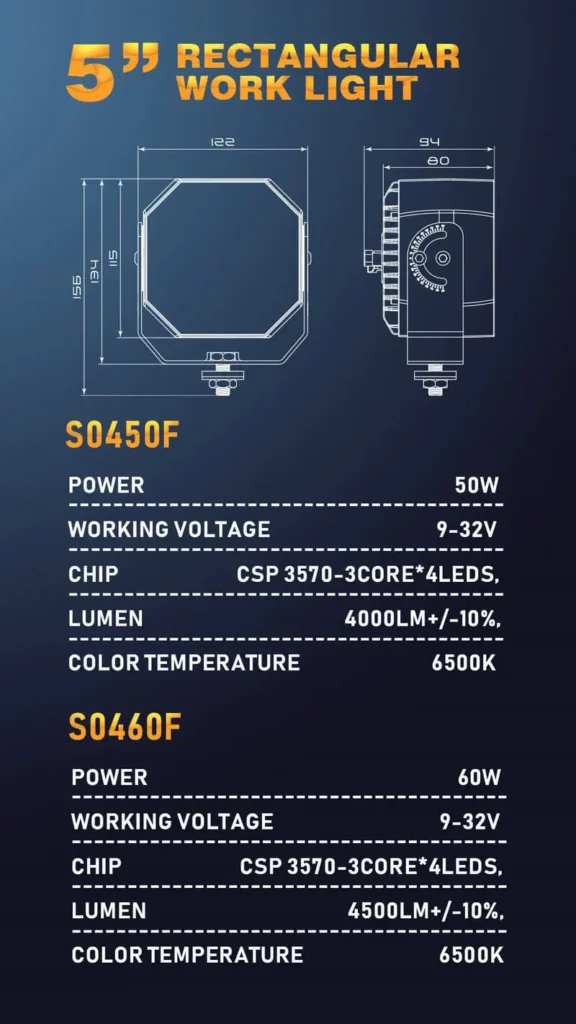

| Dimensions | 122 × 156 × 94 mm | 122 × 156 × 94 mm |
5 Inch Frameless LED Work Light Features & Applications
The S0450F / S0460F 5 Inch Frameless LED Work Light Pod is engineered for demanding off-road, commercial and industrial auxiliary-lighting applications. Its edge-to-edge frameless front design reduces raised areas around the lens where snow, slush, mud and debris can accumulate, helping maintain a clearer optical surface in demanding weather and working environments. Both models use CSP 3570 3-core LED technology with four LEDs. The S0450F provides a rated 50W output and 4000 lumens ±10%, while the S0460F provides 60W and 4500 lumens ±10%. Both produce 6500K cool-white illumination and operate across DC 9–32V electrical systems. The construction combines a corrosion-resistant powder-coated aluminum housing, sealed DT connector, pressure-relief breather valve and built-in temperature-control sensor. A 360° angle-adjustable mounting bracket provides flexible aiming for compatible vehicle and equipment installations.
Datasheet
PDF • 320 KB
Catalog
PDF • 8MB
3D Drawing
PDF • 800 KB
