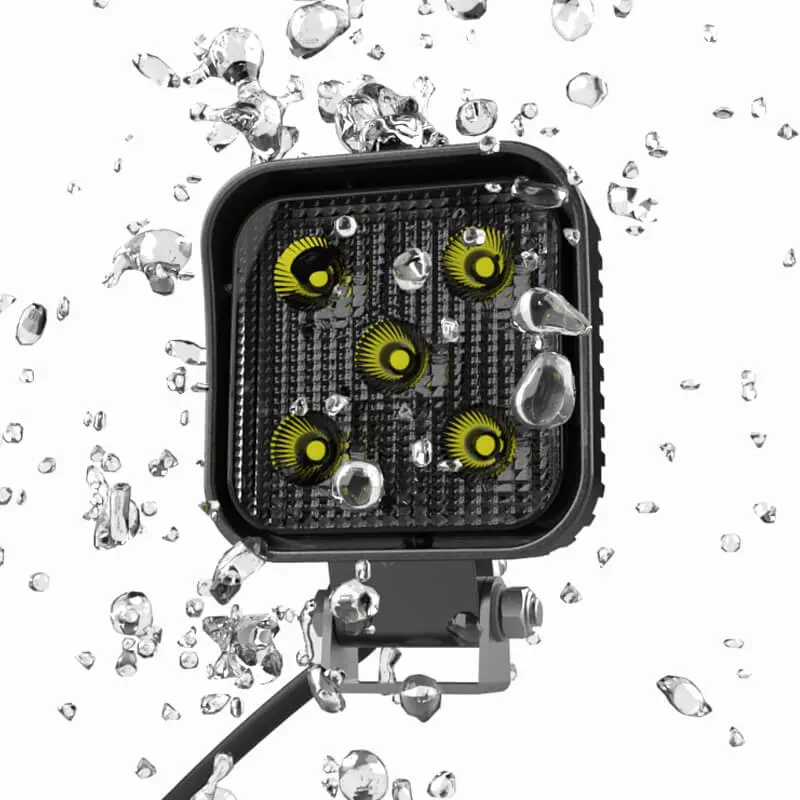

S0515B 4.2 inch square LED work light pod subjected to IP68 waterproof and splash test

Nighttime illumination test showing bright 1200LM output of 15W 4.2 inch square LED work light pod

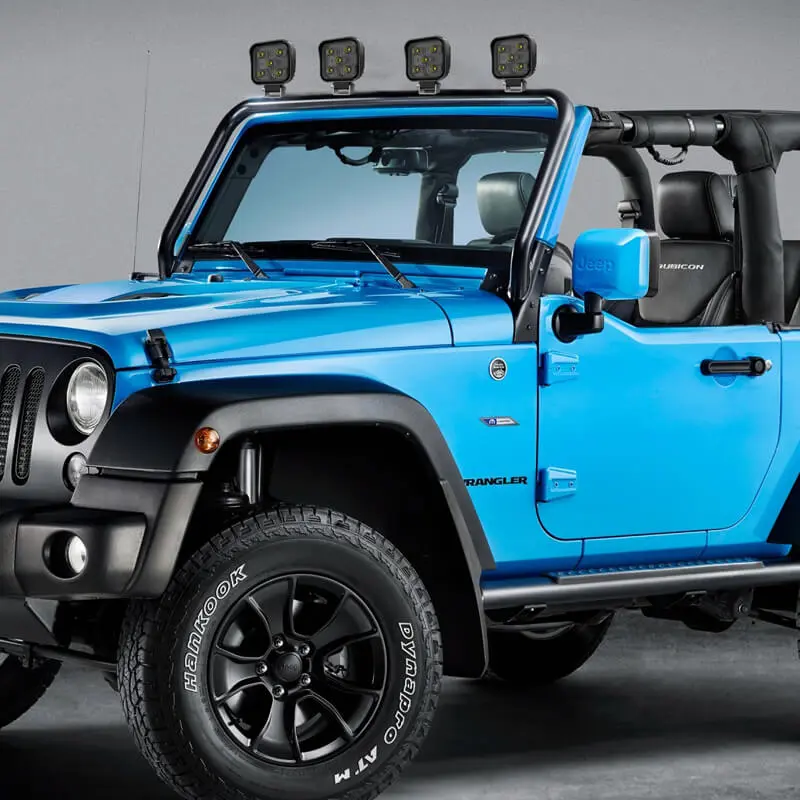

Four S0515B 4.2 inch square LED work light pods mounted on the roof rack of a blue Jeep Wrangler offroad vehicle

S0515B/G 4.2 Inch Square 15W LED Work Light

The S0515B/G 4.2 Inch LED Work Light is a compact 15W auxiliary lighting solution designed for off-road vehicles, commercial equipment and industrial applications. Five 3W Epistar LEDs deliver 1200 lumens of 6000K white illumination in a slim die-cast aluminum housing. With DC 10–30V operation, IP68 protection and Spot, Flood or Mixed beam options, the S0515B/G provides flexible auxiliary lighting for compatible 12V and 24V vehicle and equipment systems.

Compact 15W LED Performance

Five 3W Epistar LEDs deliver 1200 lumens of 6000K white illumination from a compact 4.2-inch housing, providing efficient auxiliary lighting for demanding applications.

IP68 Protected Construction

The die-cast aluminum housing features an IP68 protection rating for demanding environments involving water, dust, mud and changing weather conditions.

Multiple Beam Options

Available Spot, Flood and Mixed beam configurations provide long-range visibility, broad work-area illumination or combined near-and-far coverage.

Wide Voltage & Thermal Design

DC 10–30V operation supports compatible 12V and 24V electrical systems, while the die-cast aluminum housing and rear cooling-fin structure support effective heat dissipation.

DISCOVER NVEL →
SHARE PRODUCT

Technical Specifications Of 4.2 Inch LED Work Light

Specification	Value	Specification	Value
Model	S0515B / S0515G	Product Type	4.2 Inch Square LED Work Light
LED Chip / Rated Power	5 × 3W Epistar LEDs / 15W	Luminous Flux / Color Temperature	1200 LM / 6000K
Operating Voltage / Protection Rating	DC 10–30V / IP68	Beam Options	Spot / Flood / Mixed
Housing Material / Wiring	Heavy-Duty Die-Cast Aluminum Alloy / High-Temperature-Resistant Silicone Wire	Working Temperature / Dimensions	-40°C to +85°C / 105 × 83 × 35 mm

4.2 Inch LED Work Light Key Features & Applications

Compact 4.2-Inch Housing — The 105 × 83 × 35 mm profile suits limited mounting space. 15W / 1200LM Output — Five 3W Epistar LEDs provide 6000K white illumination. IP68 Protection — Designed for demanding outdoor environments involving water and dust exposure. Multiple Beam Options — Choose Spot, Flood or Mixed optics. Die-Cast Aluminum Cooling — Rear cooling fins support heat dissipation. DC 10–30V Operation — Supports compatible 12V and 24V systems. Applications include compatible 4x4s, SUVs, pickup trucks, ATVs, UTVs, excavators, bulldozers, cranes, forklifts, tractors, harvesters, work trucks, trailers and suitable outdoor or marine installations.

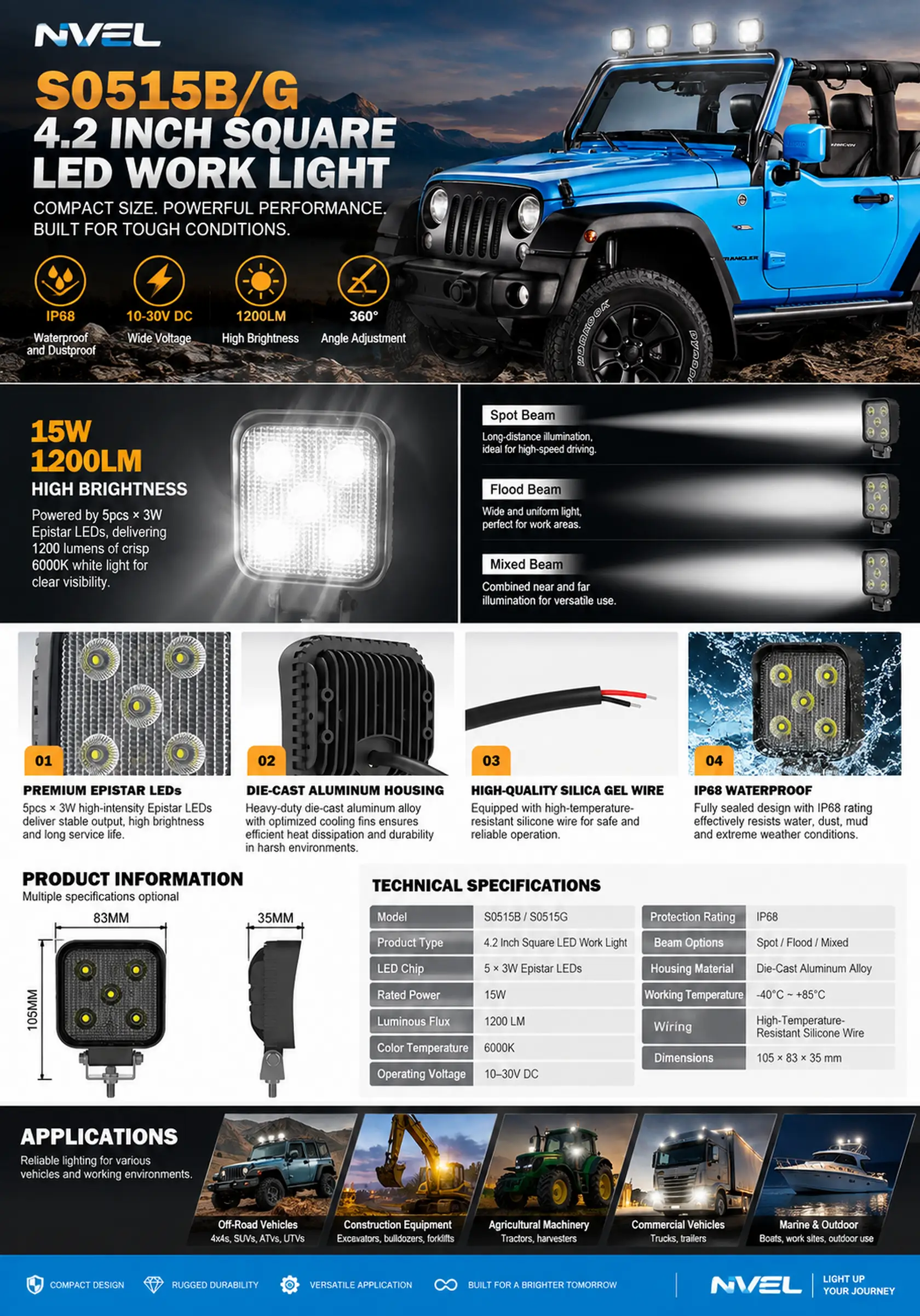

Comprehensive infographic for NVEL S0515B S0515G 4.2 inch 15W square LED work light showing features, specs, and vehicle applications

FAQ

What beam pattern should I choose: Spot, Flood or Mixed?

The best option depends on the intended application. Spot optics concentrate light into a narrower pattern for greater forward reach. Flood optics provide broader illumination for nearby work areas and low-speed operation. Mixed optics combine characteristics of both for more balanced near-and-far coverage.

Can the S0515B/G be used with 12V and 24V systems?

The S0515B/G operates from DC 10–30V, covering the nominal voltage range used by many 12V and 24V vehicle and equipment electrical systems. Installation requirements should still be verified for the specific vehicle or equipment.

What does the IP68 rating mean for this LED work light?

The S0515B/G is specified with an IP68 protection rating for demanding environments involving dust and water exposure. Proper installation, wiring and electrical connections remain important for maintaining protection in the intended application.

What are the dimensions of the S0515B/G?

The light measures 105 × 83 × 35 mm, providing a compact 4.2-inch-class profile for installations where mounting space is limited.

Where can the S0515B/G be used?

It is suitable for compatible off-road vehicles, construction equipment, agricultural machinery, commercial and utility vehicles, and appropriate outdoor or marine lighting applications.

What wiring does the S0515B/G use?

The product specification lists high-temperature-resistant silicone wire. Electrical connections and installation requirements should be verified for the intended vehicle or equipment.
